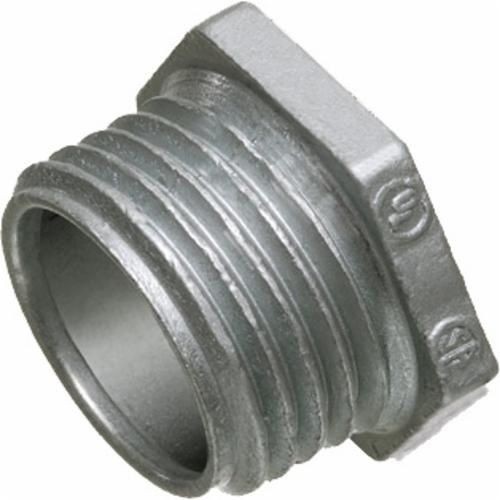

O-Z/Gedney 7-150 Bushed Type 7 Conduit Nipple, 1-1/2 in, For Use With IMC/Rigid Conduit Fittings, Malleable Iron, Electroplated Zinc

Selected O-Z/Gedney 7-150 Bushed Type 7 Conduit Nipple, 1-1/2 in, For Use With IMC/Rigid Conduit Fittings, Malleable Iron, Electroplated Zinc
O-Z/Gedney 7-150 Bushed Type 7 Conduit Nipple, 1-1/2 in, For Use With IMC/Rigid Conduit Fittings, Malleable Iron, Electroplated Zinc

Documents

Features

  • MNPS connection
  • 1 in thread length
  • 5/16 in flange thickness
  • To reduce a threaded conduit entry into a smaller trade size

Specification

Material
Malleable Iron
Minimum Order Qty
1
Order Interval
1
Size
1-1/2 in
Suitable For Use With
Rigid/IMC Conduit
Standard & Approvals
UL E11853, UL 514B Listed, CSA 009795, CSA C22.2 No 18 Certified, Federal Specification/CID A-A-50553, ANSI/NEMA FB-1
Type
Bushed Type 7
Finish
Electro-Zinc Plated
Dimensions
2-1/2 in Dia
Catalog ID
OZG7-150
