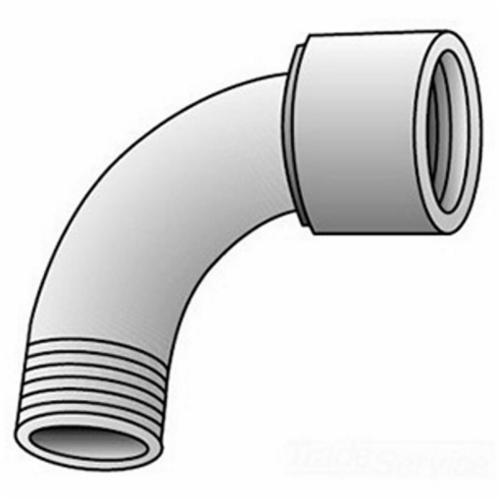

O-Z/Gedney 9-75 Type 9 Bushed Elbow, 3/4 in Trade, 90 deg, Malleable Iron, Electro-Plated Zinc
O-Z/Gedney 9-75 Type 9 Bushed Elbow, 3/4 in Trade, 90 deg, Malleable Iron, Electro-Plated Zinc
SKU: OZG9-75
Manufacturer Part Number: 27638
UPC: 783126657104
Features
- FNPT X MNPS connection
- 3/4 in thread length
Specification
| Material | Malleable Iron |
|---|---|
| Suitable For Use With | Rigid/IMC Conduit |
| Trade Size | 3/4 in |
| Angle | 90 deg |
| Finish | Zinc Electroplated |
| Dimensions | 2-15/16 in L x 2-3/16 in H |
| Standard & Approvals | UL File Number E-11853 And 11857, CSA 009795, UL 514B, CSA C22.2 No.18, Federal Specification W-F-408E, ANSI/NEMA FB-1, RoHS Complaint |
| Application | For telephone elbow, floor outlet fittings |
| Type | Type 9 |
