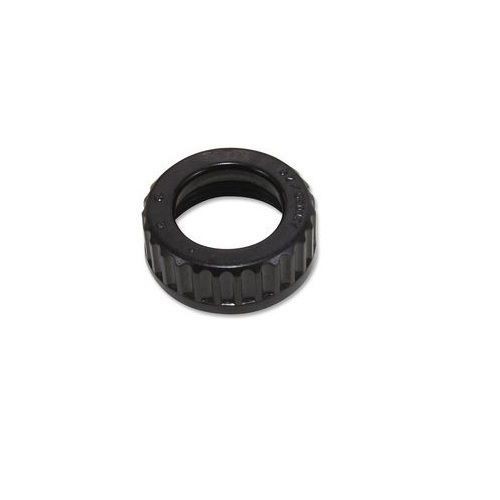

O-Z/Gedney A-100 Type A Non-Grounding Conduit Bushing, 1 in Trade, Phenolic

Selected A-100O-Z/Gedney A-100 Type A Non-Grounding Conduit Bushing, 1 in Trade, Phenolic
A-100O-Z/Gedney A-100 Type A Non-Grounding Conduit Bushing, 1 in Trade, Phenolic

Documents

Short Description

O-Z/Gedney nonmetallic insulating bushings are used to protect wires and cables at entry and exit of threaded rigid conduit and IMC. O-Z/Gedney also has a plug to be used with metallic or nonmetallic bushings to prevent the entry of dirt or dust.

Features

  • Non-grounding
  • High impact black thermoscutting phenolic bushings, with at 150 deg C UL temperature rating, that will not soften, melt or burn

Specification

Material
Phenolic
Temperature Rating
302 deg F
Trade Size
1 in
Type
Type A Threaded
Application
For threaded Rigid/IMC conduits
Standard & Approvals
UL File Number E-11853, CSA 11584, RoHS Complaint
Dimensions
1-3/4 in OD x 5/8 in W
Color
Black
