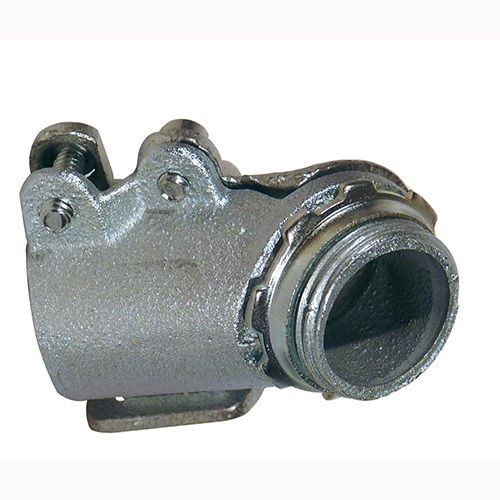

O-Z/Gedney AC-50 Type AC Squeeze Conduit Connector With Locknut, 1/2 in Trade, 0.78 to 0.94 in Cable Openings, For Use With Armored/FMC Cable, Malleable Iron, Zinc Electroplated
O-Z/Gedney AC-50 Type AC Squeeze Conduit Connector With Locknut, 1/2 in Trade, 0.78 to 0.94 in Cable Openings, For Use With Armored/FMC Cable, Malleable Iron, Zinc Electroplated
SKU: OZGAC-50
Manufacturer Part Number: AC-50
UPC: 783126015058
Documents
Features
- Male NPS hub x screw clamp connection
- 7/16 in thread length
- Centre stopped
- Zinc Electroplated
Specification
| Material | Malleable Iron |
|---|---|
| Suitable For Use With | Armored Cable and Flexible Metal Conduit |
| Trade Size | 1/2 in |
| Application | For grounding and securing armored cable and flexible metal conduit to boxes and enclosures |
| Angle | 45 deg |
| Finish | Zinc Plated |
| Dimensions | 1.94 in L x 1.69 in W |
| Standard & Approvals | UL 514B/E11853 Listed, CSA 9795/11584/C22.2 No 18 Certified, Federal Specification W-F-406E, NEC 501-4(b) Class I Division II, NEC 350-5, NEMA FB-1 |
| Type | Type AC |
| Cable Openings | 25/32 - 15/16 in |
