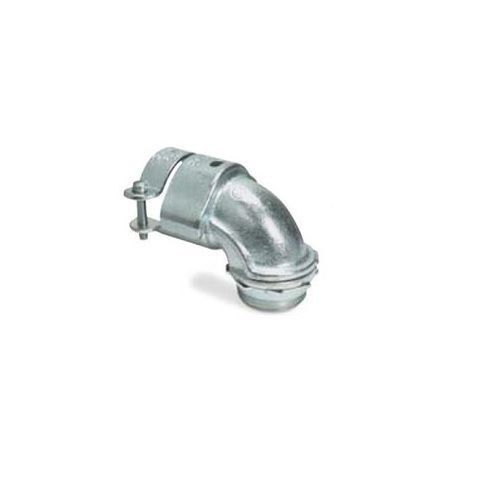

O-Z/Gedney AC150 Type AC Squeeze Conduit Connector With Locknut, 1-1/2 in Trade, 1-3/4 to 2 in Cable Openings, For Use With Armored/FMC/Non-Metallic/Service Entrance Cable, Malleable Iron, Zinc Electroplated
O-Z/Gedney AC150 Type AC Squeeze Conduit Connector With Locknut, 1-1/2 in Trade, 1-3/4 to 2 in Cable Openings, For Use With Armored/FMC/Non-Metallic/Service Entrance Cable, Malleable Iron, Zinc Electroplated
SKU: OZGAC150
Manufacturer Part Number: AC150
UPC: 783126015454
Features
- Male NPS hub x screw clamp connection
- 9/16 in thread length
- Centre stopped
- Zinc Electroplated
Specification
| Material | Malleable Iron |
|---|---|
| Angle | 90 deg |
| Cable Openings | 1-3/4 - 2 in |
| Finish | Zinc Plated |
| Standard & Approvals | UL 514B/E11853 Listed, CSA 9795/11584/C22.2 No 18 Certified, Federal Specification W-F-406E, NEC 501-4(b) Class I Division II, NEC 350-5, NEMA FB-1 |
| Application | For grounding and securing armored cable and flexible metal conduit to boxes and enclosures |
| Type | Type AC |
| Trade Size | 1-1/2 in |
| Suitable For Use With | Armored Cable, Flexible Metal Conduit, Non-Metallic and Service Entrance Cable |
| Dimensions | 3-13/16 in L x 2-13/16 in H |
