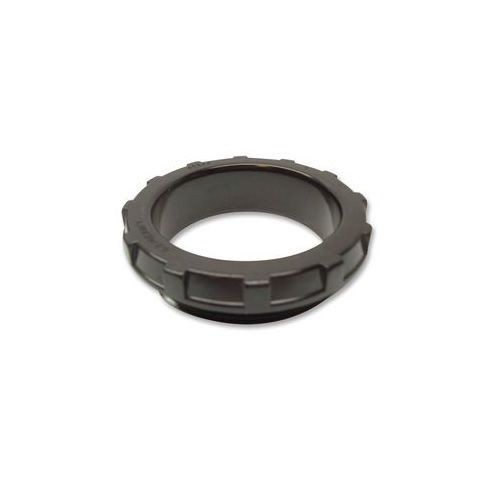

O-Z/Gedney BB-250 Type BB Non-Grounding Conduit Bushing, 2-1/2 in Trade, Phenolic

Selected O-Z/Gedney BB-250 Type BB Non-Grounding Conduit Bushing, 2-1/2 in Trade, Phenolic
O-Z/Gedney BB-250 Type BB Non-Grounding Conduit Bushing, 2-1/2 in Trade, Phenolic

Documents

Short Description

O-Z/Gedney nonmetallic insulating bushings are used to protect wires and cables at entry and exit of threaded rigid conduit and IMC. O-Z/Gedney also has a plug to be used with metallic or nonmetallic bushings to prevent the entry of dirt or dust.

Features

  • Non-grounding
  • High impact black thermoscutting phenolic bushings
  • With at 150 deg C UL temperature rating, that will not soften, melt or burn
  • 2-3/8 in bushing hole, 5/8 in thread length

Specification

Material
Phenolic
Minimum Order Qty
1
Order Interval
1
Catalog ID
OZGBB-250
Color
Black
Dimensions
3-3/8 in OD
Temperature Rating
302 deg F
Trade Size
2-1/2 in
Type
Type BB
Standard & Approvals
UL File Number E-20933, CSA 11584, RoHS Complaint
