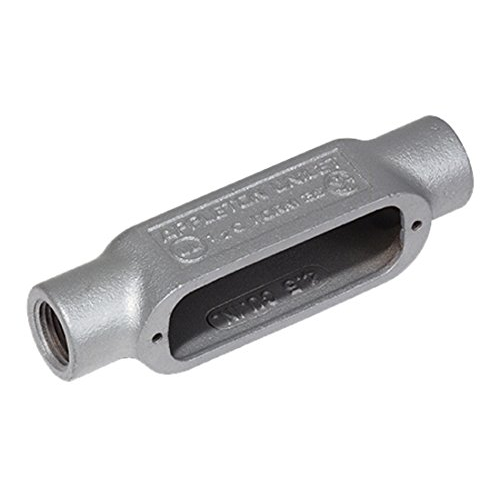

O-Z/Gedney C125A Type-C Conduit Outlet Body, 31.5 cu-in Capacity, Die Cast Copper Free Aluminum, Aluminum Enamel/Epoxy Powder Coated

Selected C125AO-Z/Gedney C125A Type-C Conduit Outlet Body, 31.5 cu-in Capacity, Die Cast Copper Free Aluminum, Aluminum Enamel/Epoxy Powder Coated
C125AO-Z/Gedney C125A Type-C Conduit Outlet Body, 31.5 cu-in Capacity, Die Cast Copper Free Aluminum, Aluminum Enamel/Epoxy Powder Coated

Documents

Short Description

O-Z/Gedney conduit bodies, covers and gaskets provide access to conductors for pulling, splicing, maintenance, and future changes and upgrades. They allow connection of straight conduit runs, branch conduit runs and 90 deg bends. Covers and gaskets can be ordered separately, or the conduit bodies, covers and gaskets can be ordered as a complete assembly.

Features

  • Raintight when used with gasketed covers
  • Internal volume and maximum wire clearly marked on castings
  • Suitable for wet locations when used with gasketed covers
  • Straight hub placement, side access opening
  • Serve as pulling fittings, make bends in conduit system
  • Provide openings for splicing
  • Connect and change direction of conduit runs
  • Allow connections for branch runs
  • Permit access to conductors for maintenance
  • Die Cast Copper Free Aluminum

Specification

Hub Size
1-1/4 in
Material
Aluminum
Number of Hubs
2
Minimum Order Qty
1
Order Interval
1
Capacity
31.5 cu-in
Catalog ID
OZGC125A
Dimensions
8-3/4 in L x 2-1/2 in W x 2-5/8 in H
Type
Type C
Application
For Rigid/IMC Conduit
Standard & Approvals
UL 514A, E18095, CSA 009795, CSA C22.2 NO 18 Certified, Federal Specification Number A-A-50563, Hazardous Locations Class 1, Division 2, Per NEC section 501-4(B)
Enclosure
NEMA FB-1/FB-2.10
Connection Type
Tapered Threaded
Finish
Aluminum Enamel
