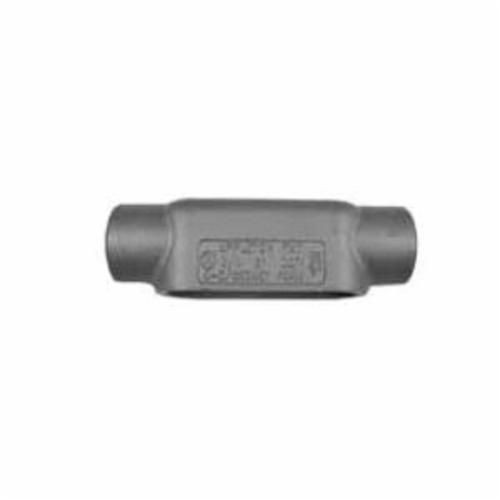

O-Z/Gedney C67 Type-C Conduit Outlet Body, 2 in Hub, Form 7 Form, 50 cu-in Capacity, Grayloy Iron, Aluminum Enamel/Zinc Electroplated
O-Z/Gedney C67 Type-C Conduit Outlet Body, 2 in Hub, Form 7 Form, 50 cu-in Capacity, Grayloy Iron, Aluminum Enamel/Zinc Electroplated
SKU: OZGC67
Manufacturer Part Number: C67
UPC: 783126070958
Short Description
Features
- Serve as pulling fittings
- Make bends in conduit system
- Provide openings for splicing
- Connect and change direction of conduit runs
- Allow connections for branch runs
- Permit access to conductors for maintenance
- Raintight when used with gasketed covers
- Malleable iron suitable for use in concrete
- Complete interchangeability with other manufacturers style 5 or 35 conduit bodies
- Internal volume and maximum wire capacity clearly marked on castings
- Suitable for wet locations when used with gasketed covers
- Straight hub placement, side access opening
- Zinc Electroplated With Aluminum Enamel
Specification
| Hub Size | 2 in |
|---|---|
| Material | Iron |
| Number of Hubs | 2 |
| Type | Type C |
| Application | For Rigid/IMC Conduit |
| Standard & Approvals | UL 514A, E18095, CSA 009795, CSA C22.2 NO 18 Certified, Federal Specification Number A-A-50563, Hazardous Locations Class 1, Division 2, Per NEC section 501-4(B) |
| Dimensions | 9-3/16 in L x 3 in W x 3-1/8 in H |
| Capacity | 50 cu-in |
| Color | Gray |
| Connection Type | Tapered FNPT |
| Enclosure | NEMA FB-1/FB-2.10 |
| Finish | Zinc Plated |
| Form | 7 |
