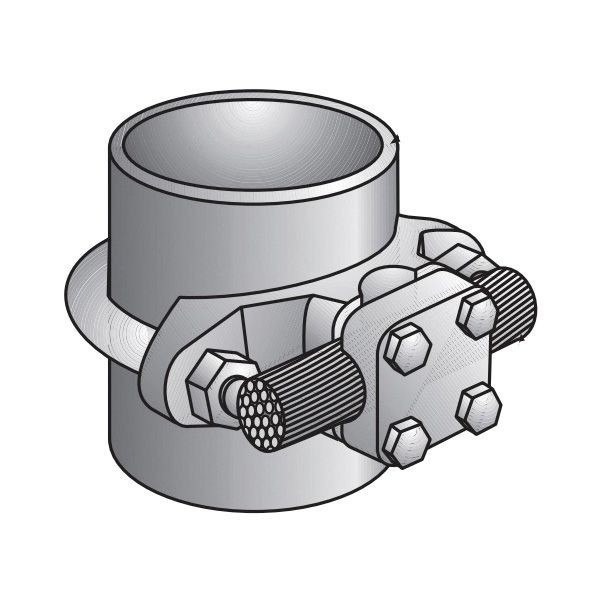

O-Z/Gedney CG-2622 Specification Grade Grounding Connector, 4 to 2/0 AWG Conductor, Copper
O-Z/Gedney CG-2622 Specification Grade Grounding Connector, 4 to 2/0 AWG Conductor, Copper
SKU: OZGCG-2622
Manufacturer Part Number: CG-2622
UPC: 783126092059
Short Description
Features
- A high strength corrosion-resistant copper alloy ground connector having a reversible contact plate which permits the ground wire to be connected either at right angles or parallel to a ground pipe
- The fitting is designed so that the saddle can be installed before the ground connection is made
- High strength silicon bronze hardware permits high clamping pressures to be applied
- Suitable for direct burial
- For ground pipe smaller than 2 in use Type ABG and wet locations
Specification
| Material | Copper |
|---|---|
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Conductor Size | 4 to 2/0 AWG |
| Series | CG Series |
| Standard & Approvals | CEC Certified, CSA 057250/C22.2 No. 41, Federal Specification W-F-406E, NEC Certified, UL 467/E-24264 |
| Type | Specification Grade |
| Pipe Size | 2-1/2 in |
| Dimensions | 4-1/8 in W x 1-3/16 in D x 4-1/2 in H |
| Connection Type | Parallel/Right Angle Cable to Pipe |
| Catalog ID | OZGCG-2622 |
| Installation | U-Bolt to Pipe/Cable Clamp |
