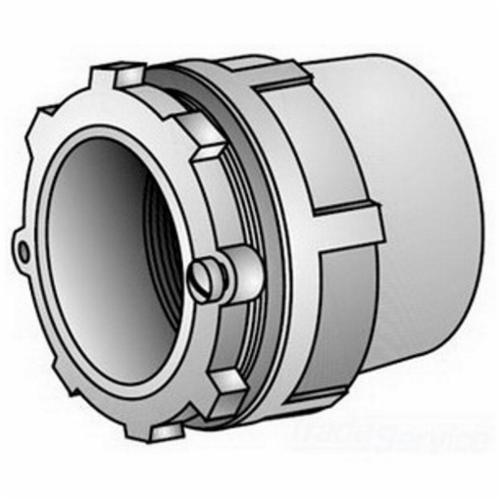

O-Z/Gedney CH-125T CH-T Space-Maker Conduit Hub, 1-1/4 in, For Use With IMC/Rigid Conduit, Malleable Iron, Zinc Plated

Selected CH-125TO-Z/Gedney CH-125T CH-T Space-Maker Conduit Hub, 1-1/4 in, For Use With IMC/Rigid Conduit, Malleable Iron, Zinc Plated
CH-125TO-Z/Gedney CH-125T CH-T Space-Maker Conduit Hub, 1-1/4 in, For Use With IMC/Rigid Conduit, Malleable Iron, Zinc Plated

Documents

Short Description

We offer a complete selection of steel, malleable iron and zinc fittings for rigid conduit and IMC. threaded and threadless, insulated or uninsulated non-insulated, watertight or general purpose, our conduit fittings, straps and accessories are available in all the sizes and configurations required to connect and support rigid conduit and to bond it to virtually any type of junction box or enclosure.

Features

  • Female bushed nipple type
  • Takes less space
  • Female thread for rigid conduit and IMC
  • Recessed o-ring seal outside the box provides a watertight threaded hub on enclosures
  • 1-1/4-11-1/2 female tapered NPSM connection
  • 3/16 in box wall thickness
  • Type CH-T - insulated throat form with bonding screw
  • Provides a more vibration resistant connection with assured ground continuity

Specification

Material
Malleable Iron
Series
CH
Size
1-1/4 in
Suitable For Use With
Rigid/IMC Conduit
Type
Space-Maker
Application
For use with service entrance conduit
Standard & Approvals
UL File Number E-11853 For Use In Wet Locations, CSA 009795, UL 514B Listed, CSA C22.2 No 18 Certified, Federal Specification W-F-408E, NEMA FB-1, 4, 12, Class I, Division 2/Class III, Division 1, 2 Per NEC 501-4(b), 501.10(b)(4), 502-4(a)(2), 503-3(a) Hazardous Locations
Finish
Zinc Plated
Dimensions
2-1/4 in Dia x 1-3/4 in L
