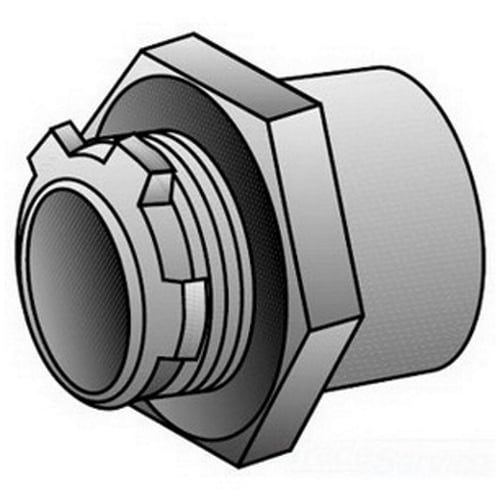

O-Z/Gedney CHM-100 Raintight Conduit Hub, 1 in, For Use With IMC/Rigid Conduit, Malleable Iron, Zinc Electroplated

Selected Data-Spec SheetO-Z/Gedney CHM-100 Raintight Conduit Hub, 1 in, For Use With IMC/Rigid Conduit, Malleable Iron, Zinc Electroplated
Data-Spec SheetO-Z/Gedney CHM-100 Raintight Conduit Hub, 1 in, For Use With IMC/Rigid Conduit, Malleable Iron, Zinc Electroplated

Documents

Short Description

We offer a complete selection of steel, malleable iron and zinc fittings for rigid conduit and IMC. threaded and threadless, insulated or uninsulated non-insulated, watertight or general purpose, our conduit fittings, straps and accessories are available in all the sizes and configurations required to connect and support rigid conduit and to bond it to virtually any type of junction box or enclosure.

Features

  • Male thread type
  • Tapered female thread for rigid conduit and IMC
  • Recessed o-ring seal assures watertight and dust tight connections
  • 1-11-1/2 tapered FNPT connection
  • Type CHM - general purpose fitting
  • Zinc Electroplated

Specification

Material
Malleable Iron
Series
CHM
Size
1 in
Suitable For Use With
Rigid/IMC Conduit
Type
Raintight
Application
For service entrance application
Standard & Approvals
UL File Number 11853 For Use In Wet Locations, CSA 009795, UL 514B Listed, CSA C22.2 No 18 Certified, Federal Specification W-F-408E, NEMA FB-1, 4, 12, Class I, Division 2/Class II, Division 1, 2/Class III, Division 1, 2 Per NEC 501-4(b), 501.10(b)(4), 502-4(a)(2), 503-3(a) Hazardous Locations
Dimensions
2 in Dia x 1-3/4 in L
Finish
Zinc Plated
