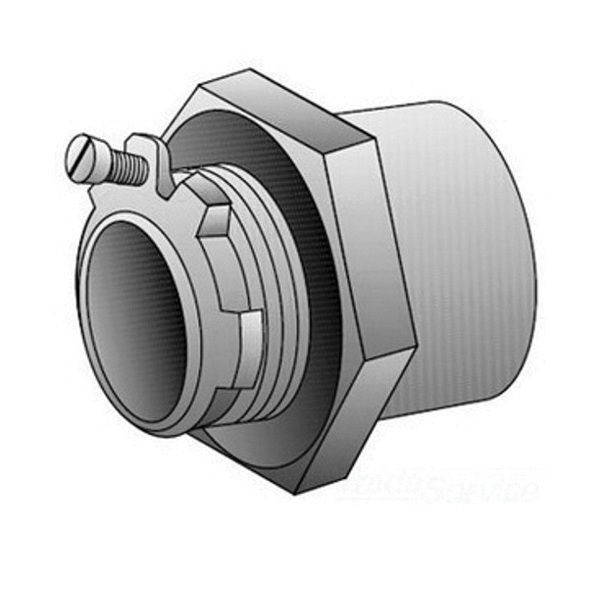

O-Z/Gedney CHM-100T Raintight Conduit Hub, 1 in, For Use With IMC/Rigid Conduit, Malleable Iron, Electro-Plated Zinc
O-Z/Gedney CHM-100T Raintight Conduit Hub, 1 in, For Use With IMC/Rigid Conduit, Malleable Iron, Electro-Plated Zinc
SKU: OZGCHM-100T
Manufacturer Part Number: CHM-100T
UPC: 783126194272
Documents
Features
- Insulated throat form with bonding locknut
- Suitable for service entrance application
- Recessed O-ring seal assures watertight and dust tight connections
- Male x 1-11-1/2 apered FNPT connection
Specification
| Material | Malleable Iron |
|---|---|
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Finish | Electro-Plated Zinc |
| Size | 1 in |
| Suitable For Use With | IMC/Rigid Conduit |
| Type | Raintight |
| Standard & Approvals | UL File No. 11853, 514B, CSA 009795, CSA C22.2 No.18, Federal Specification W-F-408E, Class I, Division 2/Class II, Division 1, 2/Class III, Division 1, 2 Per NEC 501-4(b), 501.10(b)(4), 502-4(a)(2), 503-3(a) |
| Application | Wet/Hazardous Locations |
| Series | CHM-T |
| Dimensions | 2 in Dia x 1-3/4 in L |
| Catalog ID | OZGCHM-100T |
