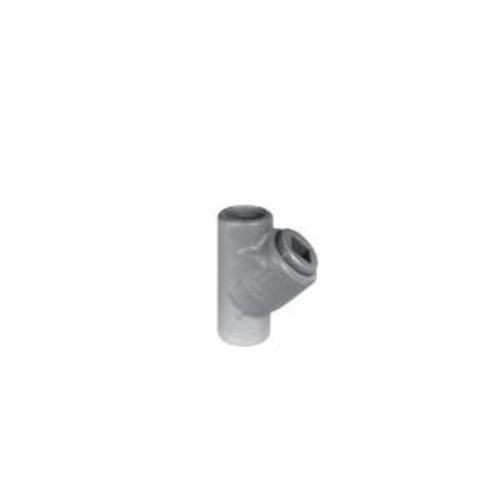

O-Z/Gedney EY-125 Type EY Vertical Sealing Fitting, 1-1/4 in, For Use With IMC/Threaded Rigid Conduit, Malleable Iron, Zinc Electroplated
O-Z/Gedney EY-125 Type EY Vertical Sealing Fitting, 1-1/4 in, For Use With IMC/Threaded Rigid Conduit, Malleable Iron, Zinc Electroplated
SKU: OZGEY-125
Manufacturer Part Number: EY-125
UPC: 783126137064
Short Description
Features
- Tapered FNPT connection
- To seal conduits in vertical runs
- To minimize the passage of gases and vapors and prevent the passage of flames from one portion of the electrical system to another through the conduit
- 25 PCT conductor fill
- Explosion proof, dust-ignition proof
- Use with type EYC sealing compound and type EYF fiber
- 6 oz sealing compound required
- 1/4 oz approximate amount of fiber/hub required
- 2-5/8 in turning radius
- Vertical
Specification
| Material | Malleable Iron |
|---|---|
| Size | 1-1/4 in |
| Suitable For Use With | IMC/Rigid Conduit |
| Type | EY |
| Standard & Approvals | UL E34997 Listed, UL Listed Using O-Z/Gedney EYC Sealing Compound Or Crouse-Hinds Chico Compound, UL Listed For Vertical Conduit Runs In: Class I, Division 1, 2, Groups C, D, Class I, Zone 1, 2, Groups IIA, IIB, Class II, Division 1, 2, Groups E, F, G, Class III, CSA 009795, CSA Certified sealing compound, Applicable Third Party Standards: UL 886, CSA C22.2 Number 30, NEC Articles 500-503 & 505, Military Specification: Mil-F-28675 |
| Dimensions | 2 in Dia x 5-1/16 in L |
| Finish | Zinc Plated |
