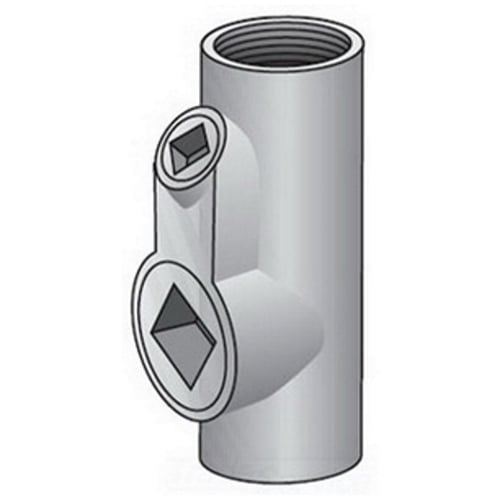

O-Z/Gedney EYA-100 Type EYA Vertical/Horizontal Sealing Fitting, 1 in, For Use With IMC/Threaded Rigid Conduit, Malleable Iron, Zinc Electroplated

Selected Data-Spec SheetO-Z/Gedney EYA-100 Type EYA Vertical/Horizontal Sealing Fitting, 1 in, For Use With IMC/Threaded Rigid Conduit, Malleable Iron, Zinc Electroplated
Data-Spec SheetO-Z/Gedney EYA-100 Type EYA Vertical/Horizontal Sealing Fitting, 1 in, For Use With IMC/Threaded Rigid Conduit, Malleable Iron, Zinc Electroplated

Documents

Short Description

Every O-Z/Gedney electrical product is built to pass a simple test. Time. O-Z/Gedney has over 150 years of experience in outfitting electrical infrastructure in commercial and industrial applications, with solutions that ensure reliable and durable installations to help process our food, clean our water, generate our power and get us safely from place to place. Our materials, field research and design innovation come together in products that are unsurpassed for quality.

Features

  • Tapered FNPT connection
  • To seal conduits in vertical or horizontal runs
  • To minimize the passage of gases and vapors and prevent the passage of flames from one portion of the electrical system to another through the conduit
  • 25 PCT conductor fill
  • Explosion proof, dust-ignition proof
  • Use with type EYC sealing compound and type EYF fiber
  • 2.25 oz sealing compound required
  • 1/8 oz approximate amount of fiber/hub required
  • 1-3/4 in turning radius
  • Vertical or horizontal

Specification

Material
Malleable Iron
Minimum Order Qty
1
Order Interval
1
Catalog ID
OZGEYA-100
Dimensions
1-3/8 in Dia x 4-5/16 in L
Finish
Zinc Plated
Size
1 in
Suitable For Use With
IMC/Rigid Conduit
Type
EYA
Standard & Approvals
UL E34997 Listed, CSA 009795 Suitable For Wet Locations, UL Listed Using: O-Z/Gedney EYC Sealing Compound Or Crouse-Hinds Chico Compound, CSA Certified Sealing Compound, Class I, Division 1, 2, Groups A, B, C, D, Class I, Zone 1, 2, Groups IIA, IIB, IIC, Class II, Division 1, 2, Groups E, F, G, Class III, Applicable Third Party Standards: UL 886, CSA C22.2 Number 30 NEC Articles 500-503 & 505, Military Specification: Mil-F-28675
