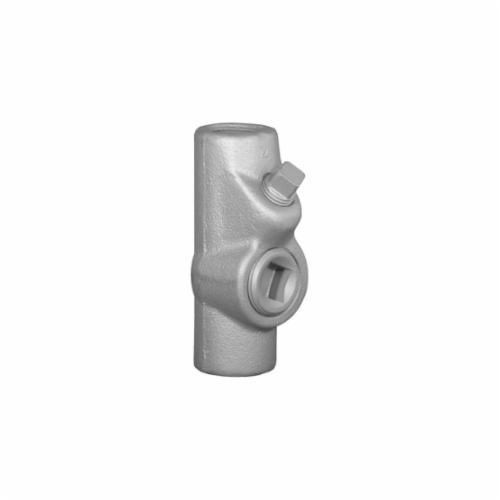

O-Z/Gedney EYAX-50 Dust-Ignitionproof Explosionproof Conduit Sealing Fitting, 1/2 in, For Use With IMC/Threaded Rigid Metallic Conduit, Malleable Iron, Zinc Electroplated

Selected O-Z/Gedney EYAX-50 Dust-Ignitionproof Explosionproof Conduit Sealing Fitting, 1/2 in, For Use With IMC/Threaded Rigid Metallic Conduit, Malleable Iron, Zinc Electroplated
O-Z/Gedney EYAX-50 Dust-Ignitionproof Explosionproof Conduit Sealing Fitting, 1/2 in, For Use With IMC/Threaded Rigid Metallic Conduit, Malleable Iron, Zinc Electroplated

Documents

Short Description

O-Z/Gedney EYAX 40% fill expanded fill sealing fittings, for close turning radius, prevent the passage of gases, vapors or flames from one portion of a conduit system to another. They also restrict large amounts of ignitable gases or vapors from accumulating to confine explosive pressure. O-Z/Gedney sealing fittings are explosionproof, dust-ignitionproof and raintight. They are suitable for use in Class I and II locations.

Features

  • Smooth, rounded integral bushing in each hub to protect conductor insulation
  • Accurately tapped, tapered NPT threads for tight, rigid joints and ground continuity
  • Removable nipple in male sealing fitting may be used interchangeably in top or bottom hub
  • Allow up to 40% conduit fill in compliance with the National Electrical Code
  • Required in Class I, Division 1 and 2 locations within 18 in of enclosures containing apparatus that may cause arcs, sparks or high temperatures
  • Required in Class I, Division 1 and 2 locations where 2 in or larger conduit enters enclosure, fitting housing terminals, splices or taps
  • Required in Class I, Division 1 and 2 locations at the boundary where conduit leaves classified location
  • Required in Class I, Division 1 and 2 locations where two or more enclosures are connected by 36 in or less conduit
  • Seal must be located within 18 in of either enclosure
  • Required where cables which exceed rate of gas or vapor transmission permitted for seals are used in Class I, Division 2 locations

Specification

Material
Malleable Iron
Size
1/2 in
Finish
Zinc Electroplated
Dimensions
3-11/16 in L x 1-1/4 in W
Standard & Approvals
UL 886, UL File No. E-34997, CSA C22.2 No. 30, CSA 009795, NEC Articles 500-503/505, Military Specification Mil-F-28675, Class I, Division 1, 2, Groups A, B, C, D, Class I, Zone 1, 2, Groups IIA, IIB, IIC, Class II, Division 1, 2, Groups E, F, G, Class II
Application
For minimize the passage of gases and vapors and prevent the passage of flames from one portion of the electrical system to another through the conduit
Type
Dust-Ignitionproof Explosionproof
Suitable For Use With
IMC/Threaded Rigid Metallic Conduit
Series
EYAX
