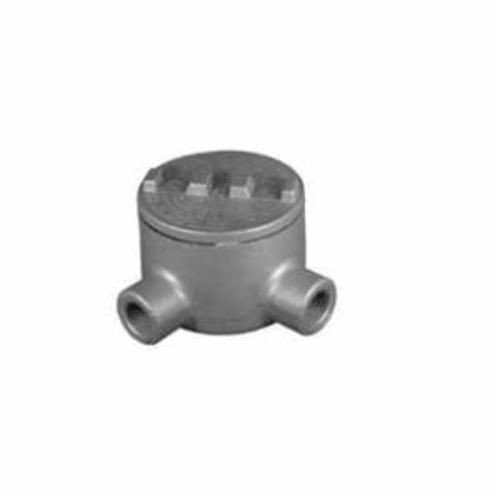

O-Z/Gedney GUAL-75 Dust-Ignitionproof Explosionproof Conduit Outlet Box, 3/4 in, 3 in Cover Opening, 15 cu-in, Aluminum Enamel/Zinc Electroplated

Selected GUAL-75O-Z/Gedney GUAL-75 Dust-Ignitionproof Explosionproof Conduit Outlet Box, 3/4 in, 3 in Cover Opening, 15 cu-in, Aluminum Enamel/Zinc Electroplated
GUAL-75O-Z/Gedney GUAL-75 Dust-Ignitionproof Explosionproof Conduit Outlet Box, 3/4 in, 3 in Cover Opening, 15 cu-in, Aluminum Enamel/Zinc Electroplated

Short Description

GUA conduit outlet boxes are for use in hazardous locations to provide for change in conduit direction, access to conductors, and as pull and splice boxes. They feature internally threaded bodies and cast-in brackets on the cover and are suitable for use wet locations.

Features

  • Internal ground screw
  • Smooth hub bushings protect insulation when pulling conductors
  • Cast-in brackets on cover for use with breaker-bar tools for tightening/loosening
  • Tapered threaded hubs (NPT)
  • Malleable iron bodies have high tensile strength and ductility, and provide great resistance to corrosion, impact, and shock
  • Hub covers, fixture canopies, sealing covers and threaded extensions available
  • Functions as a 25% fill sealing fcutting when used with GUASC sealing cover
  • Included O-ring gasket provides NEMA 4 rating
  • 2 outlets
  • Copper-free aluminum cover
  • 3/4 number of cable entry
  • Zinc Electroplated With Aluminum Enamel

Specification

Material
Malleable Iron
Series
GUA
Size
3/4 in
Suitable For Use With
IMC/Rigid Conduit
Standard & Approvals
UL E-30513, UL 886, Class I, Division 1, 2, Groups C, D, Class I, Zone 1, 2, Groups IIA, IIB, Class II, Division 1, 2, Groups E, F, G, Class III, CSA 020945, CSA C22.2 Number 30, NEC 500-503 And 505, Mil-F-28675, A-A-50563
Capacity
15 cu-in
Finish
Zinc Plated
Includes
O-Ring Gasket
Cover Opening Size
3 in
Dimensions
3-5/8 in H x 3-5/8 in W x 2-1/8 in D
