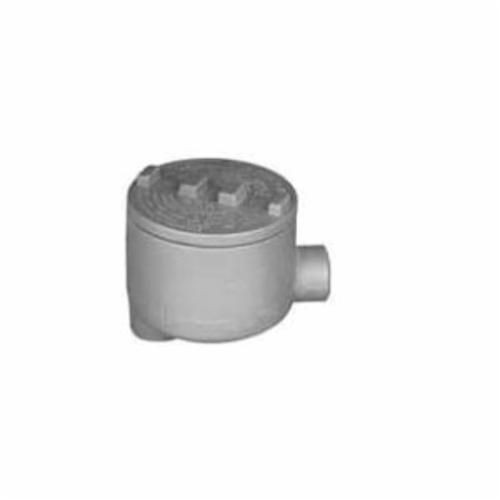

O-Z/Gedney GUALB-100 Dust-Ignitionproof Explosionproof Conduit Outlet Box, 1 in, 3 in Cover Opening, 17 cu-in, Aluminum Enamel/Zinc Electroplated
O-Z/Gedney GUALB-100 Dust-Ignitionproof Explosionproof Conduit Outlet Box, 1 in, 3 in Cover Opening, 17 cu-in, Aluminum Enamel/Zinc Electroplated
SKU: OZGGUALB-100
Manufacturer Part Number: GUALB-100
UPC: 783126247329
Short Description
Features
- Internal ground screw
- Smooth hub bushings protect insulation when pulling conductors
- Cast-in brackets on cover for use with breaker-bar tools for tightening/loosening
- Tapered threaded hubs (NPT)
- Malleable iron bodies have high tensile strength and ductility, and provide great resistance to corrosion, impact, and shock
- Hub covers, fixture canopies, sealing covers and threaded extensions available
- Functions as a 25% fill sealing fcutting when used with GUASC sealing cover
- Included O-ring gasket provides NEMA 4 rating
- 2 outlets
- Copper-free aluminum cover
- 1 number of cable entry
- Zinc Electroplated With Aluminum Enamel
Specification
| Material | Malleable Iron |
|---|---|
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Capacity | 17 cu-in |
| Finish | Zinc Plated |
| Size | 1 in |
| Suitable For Use With | IMC/Rigid Conduit |
| Includes | O-Ring Gasket |
| Standard & Approvals | UL E-30513, UL 886, Class I, Division 1, 2, Groups C, D, Class I, Zone 1, 2, Groups IIA, IIB, Class II, Division 1, 2, Groups E, F, G, Class III, CSA 020945, CSA C22.2 Number 30, NEC 500-503 And 505, Mil-F-28675, A-A-50563 |
| Application | For providing access to conductors for pulling, splicing, maintenance and future changes/upgrades, allows connection of straight conduit runs, branch conduit runs and 90 deg bends |
| Series | GUA |
| Dimensions | 3-5/8 in H x 3-5/8 in W x 2-3/8 in D |
| Cover Opening Size | 3 in |
| Catalog ID | OZGGUALB-100 |
