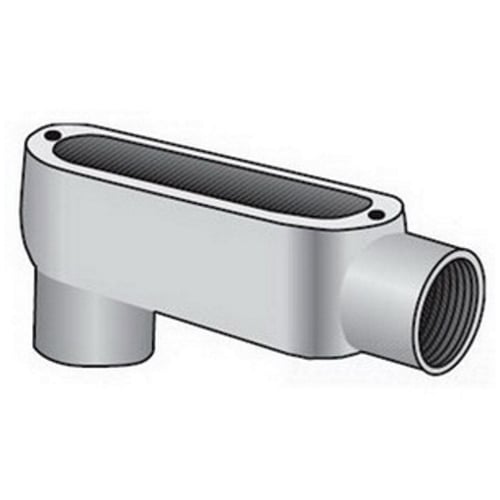

O-Z/Gedney LB-100 Type LB Conduit Outlet Body, 12.2 cu-in, Malleable Iron, Aluminum Enamel/Zinc Electroplated
O-Z/Gedney LB-100 Type LB Conduit Outlet Body, 12.2 cu-in, Malleable Iron, Aluminum Enamel/Zinc Electroplated
SKU: OZGLB-100
Manufacturer Part Number: LB-100
UPC: 783126327953
Documents
Short Description
Features
- Serve as pulling fittings
- Make bends in conduit system
- Provide openings for splicing
- Connect and change direction of conduit runs
- Allow connections for branch runs
- Permit access to conductors for maintenance
- Tapered threaded hubs (NPT)
- Raintight when used with gasketed covers
- Internal volume and maximum wire capacity clearly marked on castings
- Set screw type has slotted hex head steel hardened cup-point set screw for EMT
- Closed-cell neoprene gasket
- Complete interchangeability with other manufacturers style 5 or 35 conduit bodies
- Suitable for wet locations when used with gasketed covers
- Domed copper free aluminum cover with stainless steel screws
- Hub location 90 deg
- Access opening back
- Zinc Electroplated With Aluminum Enamel finish
- Zinc Electroplated
Specification
| Hub Size | 1 in |
|---|---|
| Material | Malleable Iron |
| Number of Hubs | 2 |
| Type | Type LB |
| Application | For Rigid/IMC Conduit |
| Standard & Approvals | UL 514A, E18095 Listed, CSA 009795 C22.2 NO 18 Certified, Federal Specification Number A-A-50563, Hazardous Locations Class 1, Division 2 Per NEC Section 501-4(B) |
| Connection Type | Tapered FNPT |
| Enclosure | NEMA FB-1/FB-2.10 |
| Finish | Zinc Plated |
| Capacity | 12.2 cu-in |
| Dimensions | 6-1/4 in L x 1-7/8 in W |
