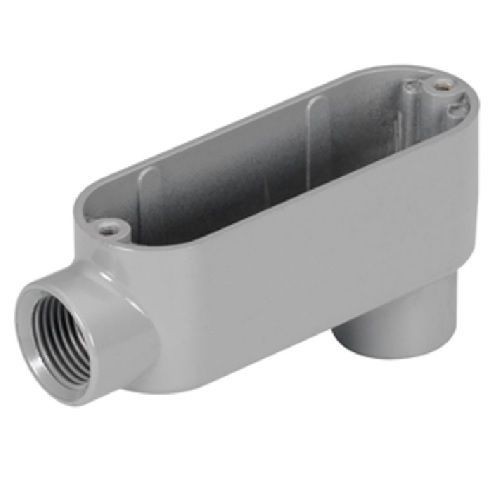

O-Z/Gedney LB-75 Type LB Conduit Body, 3/4 in Hub, 7.3 cu-in, Malleable Iron, Zinc Plated

Selected O-Z/Gedney LB-75 Type LB Conduit Body, 3/4 in Hub, 7.3 cu-in, Malleable Iron, Zinc Plated
O-Z/Gedney LB-75 Type LB Conduit Body, 3/4 in Hub, 7.3 cu-in, Malleable Iron, Zinc Plated

Short Description

O-Z/Gedney conduit bodies, covers and gaskets provide access to conductors for pulling, splicing, maintenance, and future changes and upgrades. They allow connection of straight conduit runs, branch conduit runs and 90deg bends. Covers and gaskets can be ordered separately, or the conduit bodies, covers and gaskets can be ordered as a complete assembly.

Features

  • Serve as pulling fittings
  • Make bends in conduit system
  • Provide openings for splicing
  • Connect and change direction of conduit runs
  • Allow connections for branch runs
  • Permit access to conductors for maintenance
  • Tapered threaded hubs (NPT)
  • Raintight when used with gasketed covers
  • Internal volume and maximum wire capacity clearly marked on castings
  • Set screw type has slotted hex head steel hardened cup-point set screw for EMT
  • Closed-cell neoprene gasket
  • Complete interchangeability with other manufacturers style 5 or 35 conduit bodies
  • Suitable for wet locations when used with gasketed covers
  • Domed copper free aluminum cover with stainless steel screws
  • Hub location 90 deg
  • Access opening back
  • Zinc Electroplated With Aluminum Enamel finish
  • Zinc Electroplated

Specification

Hub Size
3/4 in
Material
Malleable Iron
Number of Hubs
2
Type
Type LB
Standard & Approvals
UL 514A, E18095 Listed, CSA 009795 C22.2 NO 18 Certified, Federal Specification Number A-A-50563, Hazardous Locations Class 1, Division 2 Per NEC Section 501-4(B), RoHS Compliant
Dimensions
5-3/8 in L x 1-7/8 in W
Capacity
7.3 cu-in
Connection Type
Tapered FNPT
Enclosure
NEMA FB-1/FB-2.10
Finish
Zinc Plated
