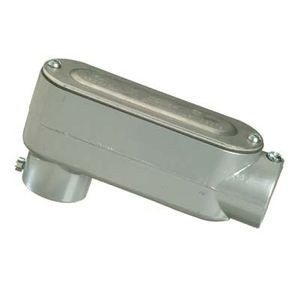

O-Z/Gedney LB47 Type LB Conduit Outlet Body, 1-1/4 in Hub, 7 Form, 19.3 cu-in Capacity, Grayloy Iron, Aluminum Enamel/Zinc Electroplated
O-Z/Gedney LB47 Type LB Conduit Outlet Body, 1-1/4 in Hub, 7 Form, 19.3 cu-in Capacity, Grayloy Iron, Aluminum Enamel/Zinc Electroplated
SKU: OZGLB47
Manufacturer Part Number: LB47
UPC: 783126328165
Documents
Short Description
Features
- Serve as pulling fittings
- Make bends in conduit system
- Provide openings for splicing
- Connect and change direction of conduit runs
- Allow connections for branch runs
- Permit access to conductors for maintenance
- Tapered threaded hubs (NPT)
- Raintight when used with gasketed covers
- Complete interchangeability with other manufacturers Form 7 conduit bodies
- Flat back design for greater wiring capacity and surface mounting
- Time-saving clip-on™ cover
- Internal volume and maximum wire capacity clearly marked on castings
- Stainless steel screws
- Suitable for wet locations when used with gasketed covers
- Back access opening
- 90 deg hub location
- Use to provide access to conductors for pulling, splicing, maintenance and future changes/upgrades, allows connection of straight conduit runs, branch conduit runs and 90 deg bends
- Zinc Electroplated With Aluminum Enamel finish
- Zinc Electroplated
Specification
| Hub Size | 1-1/4 in |
|---|---|
| Mounting Type | Surface |
| Number of Hubs | 2 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Color | Gray |
| Enclosure | NEMA FB-1/FB-2.10 |
| Finish | Zinc Plated |
| Capacity | 19.3 cu-in |
| Material | Iron |
| Type | Type LB |
| Form | 7 |
| Dimensions | 6-1/2 in L x 2-3/16 in W x 3-5/16 in H |
| Connection Type | Tapered FNPT |
| Catalog ID | OZGLB47 |
| Standard & Approvals | UL 514A, E18095 Listed, CSA 009795 C22.2 NO 18 Certified, Federal Specification Number A-A-50563, Hazardous Locations Class 1, Division 2 Per NEC Section 501-4(B), RoHS Compliant |
