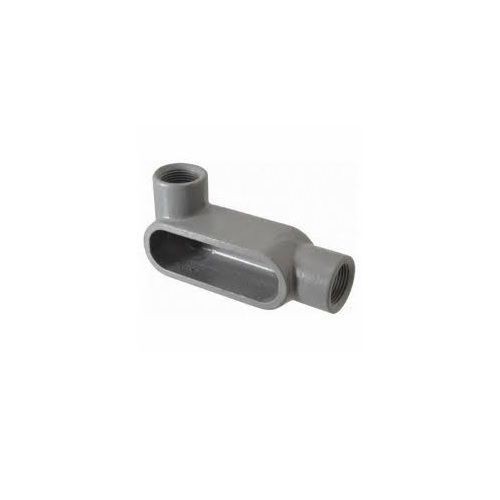

O-Z/Gedney LL17 Type LL Conduit Outlet Body, Form 7 Form, 4 cu-in Capacity, Grayloy Iron, Aluminum Enamel/Zinc Electroplated
O-Z/Gedney LL17 Type LL Conduit Outlet Body, Form 7 Form, 4 cu-in Capacity, Grayloy Iron, Aluminum Enamel/Zinc Electroplated
SKU: OZGLL17
Manufacturer Part Number: LL17
UPC: 783126378016
Short Description
Features
- Serve as pulling fittings make bends in conduit system, Provide openings for splicing
- Make bends in conduit system
- Provide openings for splicing, connect and change direction of conduit runs
- Allow connections for branch runs
- Permit access to conductors for maintenance
- Internal volume and maximum wire capacity clearly marked on castings
- Smooth, rounded integral bushing in each hub protects conductor insulation
- Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
- Wedge-Lok Form-IN-Place covers with integral gasket are approved for use in wet locations
- Grayloy-iron bodies with cast covers and gasket are approved for use in wet locations
- Unique Wedge-Lok clip cover design allows easy removal at any later time, without damaging the conduit body, the cover is secured with clips, not screws
- Completely interchangeable with Crouse-Hinds Form 7 bodies, gaskets and covers
- Equivalent FM7 and Form 7 units have identical applications and installation dimensions
- Flat back design provides greater cubic content for easier wire pulling, and more room for splicing
- Zinc Electroplated With Aluminum Enamel finish
- Smooth hub openings allow easy conduit joining
- Pan-head cover screws secure cover clips and provide superior screwdriver seating and torque, cover screws and clips are captive to prevent loss
- Hub size, body style, compliance data, maximum wire number/size and cubic capacity molded into body
- Left side access opening
Specification
| Hub Size | 1/2 in |
|---|---|
| Material | Iron |
| Mounting Type | Surface |
| Number of Hubs | 2 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Capacity | 4 cu-in |
| Color | Gray |
| Connection Type | FNPT |
| Finish | Zinc Plated |
| Form | 7 |
| Type | Type LL |
| Enclosure | NEMA FB-1/FB-2.10 |
| Dimensions | 4.56 in L x 2.25 in W x 2.25 in H |
| Catalog ID | OZGLL17 |
| Standard & Approvals | UL 514A, E18095 Listed, CSA 9795, C22.2 NO 18 Certified, Federal Specification A-A-50563, RoHS Compliant |
