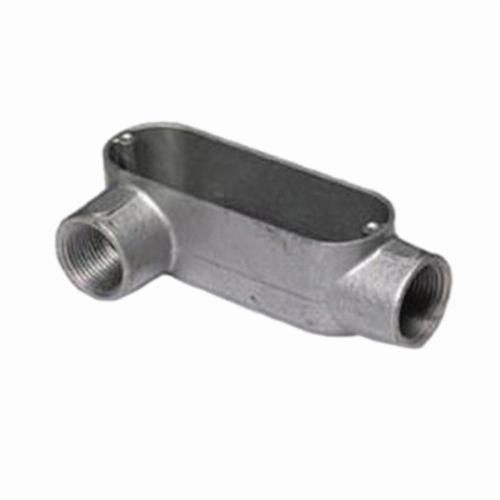

O-Z/Gedney LR400A Type LR Conduit Outlet Body, 4 in Hub, 350 cu-in Capacity, Sand Cast Copper Free Aluminum, Epoxy Powder Coated Enamel
O-Z/Gedney LR400A Type LR Conduit Outlet Body, 4 in Hub, 350 cu-in Capacity, Sand Cast Copper Free Aluminum, Epoxy Powder Coated Enamel
SKU: OZGLR400A
Manufacturer Part Number: LR400A
UPC: 783126388961
Documents
Short Description
Features
- Set screw type has slotted hex head steel hardened cup-point set screw for EMT
- Domed copper free aluminum cover with stainless steel screws
- Closed-cell neoprene gasket
- Tapered threaded hubs (NPT) or set screw design
- Threaded style is raintight when used with casketed covers
- Internal volume and maximum wire capacity clearly marked on castings
- Allows connection of straight conduit runs, branch conduit runs and 90 deg bends
- Suitable for wet locations when used with gasketed covers
- 90 deg hub location
- Right side access opening
- (3) 350MCM max wire fill
- Copper Free Sand Cast Aluminum
- Tapered FNPT Connection
Specification
| Hub Size | 4 in |
|---|---|
| Material | Aluminum |
| Number of Hubs | 2 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Capacity | 350 cu-in |
| Catalog ID | OZGLR400A |
| Connection Type | FNPT |
| Dimensions | 16-5/8 in L x 5-5/8 in H |
| Enclosure | NEMA FB-1/FB-2.10 |
| Finish | Aluminum Enamel |
| Type | Type LR |
| Application | For pulling, splicing, maintenance and future changes and upgrades |
| Standard & Approvals | UL 514A, E18095 Listed, CSA LR-9795, CSA C22.2 NO 18 Certified, Federal Specification A-A-50563 |
