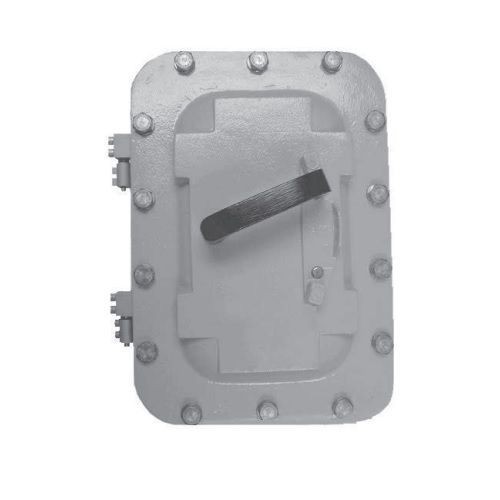

O-Z/Gedney NEAB3036DS NE Series Non-Fused Explosionproof Disconnect Switch, 600 VAC, 125/250 VDC, 30 A, 3 Poles
O-Z/Gedney NEAB3036DS NE Series Non-Fused Explosionproof Disconnect Switch, 600 VAC, 125/250 VDC, 30 A, 3 Poles
SKU: OZGNEAB3036DS
Manufacturer Part Number: NEAB3036DS
UPC: 783126978537
Features
- Explosionproof, dust ignitionproof, watertight
- Precision machined flame path between box and cover
- Stainless steel hinges are standard
- Stainless steel, captive Quad-Lead™ cover bolts are standard (disengaged in 1-1/2 turns)
- Ground lug package and installation instructions for termination of ground wire enclosed
- External operating handle with stops for limiting handle travel
- Disconnects operators can be locked in the on or off position (up to 3 padlocks)
- External flange maximizes internal space
- Standard outlets top and bottom for line and load wiring
- Plugged 1/2 in outlets top and bottom for breather and drain
- Disconnects mounted on a galvanized steel removable pan
Specification
| Material | Copper-Free Aluminum |
|---|---|
| Mounting Type | Slotted |
| Number Of Poles | 3 |
| Series | NE Series |
| Type | Non-Fused |
| Voltage Rating | 600 VAC, 125/250 VDC |
| Standard & Approvals | ARRA Compliant, Buy American Act Compliant, UL 894/1203 File No. E84577, CSA 22.2 |
| Amperage Rating | 30 A |
| Color | Gray |
| Enclosure Type | NEMA 4/4X/7B/7C/7D/9E/9F/9G |
| Actuator Type | External Handle |
| Dimensions | 15.25 in H x 10.63 in W x 8.84 in D |
| Finish | Epoxy Powder Coated |
