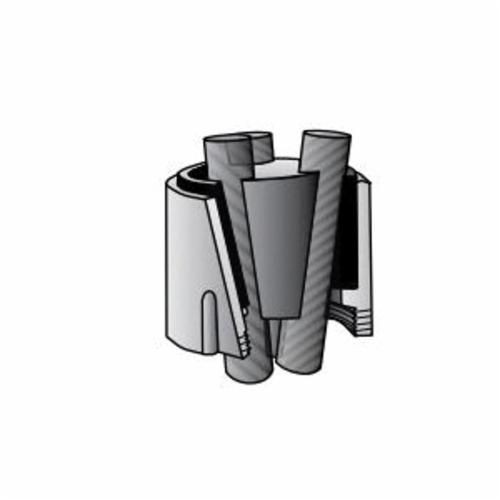

O-Z/Gedney S-1500-2 1-Piece Plug Cable Support With Pozi-Grip S-Style Wedging Plug, 1-1/2 in, Surface Mount, Ductile Iron/Malleable Iron
O-Z/Gedney S-1500-2 1-Piece Plug Cable Support With Pozi-Grip S-Style Wedging Plug, 1-1/2 in, Surface Mount, Ductile Iron/Malleable Iron
SKU: OZGS-1500-2
Manufacturer Part Number: S-1500-2
UPC: 783126022520
Documents
Short Description
Features
- For supporting non-armored electrical cables in vertical conduit risers
- Threaded for Rigid Conduit and IMC
- Use with all types of insulations at voltages to and including 600 Volt
- The fastest and easiest type cable support to install
- The knurled insulating inner surface and one-piece impregnated hardwood pOZi-grip plug provide positive support well in excess of code requirements
- Body Only can be ordered separately, for installation prior to wire pulling, Plug Only can be ordered later, once wires are in place
- If mounting on a non-metallic/non-grounded conduit, a Lay-In-Lug grounding lug should be mounted on cable support body
- For Threadless Rigid Conduit, Threadless IMC, or EMT, the body can be attached to the male threads of a set screw or compression connector
- For PVC Conduit, use a PVC terminal adapter
- Tapered/Knurled body
- For two or more wires
- Type S
Specification
| Size | 1-1/2 in |
|---|---|
| Suitable For Use With | IMC/EMT/Rigid Conduit |
| Type | 1-Piece |
| Application | Outdoor Use |
| Standard & Approvals | UL E11853, File No. 514B, CSA 011584, C22.2 No.18.3 |
| Dimensions | 2-5/8 in Dia x 2-3/8 in H |
| Finish | Hot Dipped Galvanized |
| Material | Malleable/Ductile Iron |
| Mounting Type | Vertical |
