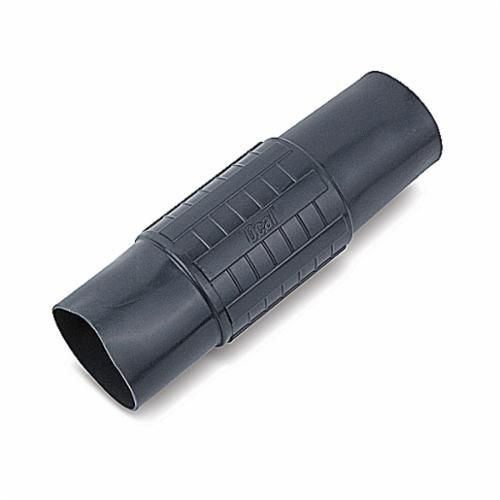

Ocal® CPL1/2-G Straight Threaded Conduit Coupling, 1/2 in, For Use With Rigid Conduits, Steel, Galvanized/PVC Coated

Selected CPL21/2-GOcal® CPL1/2-G Straight Threaded Conduit Coupling, 1/2 in, For Use With Rigid Conduits, Steel, Galvanized/PVC Coated
CPL21/2-GOcal® CPL1/2-G Straight Threaded Conduit Coupling, 1/2 in, For Use With Rigid Conduits, Steel, Galvanized/PVC Coated

Documents

Short Description

With outstanding performance in corrosive environments, Ocal® PVC coated conduit and fittings extend the life of your electrical system for many years beyond the lifespan of standard rigid conduit systems.

Features

  • Pressure-sealing sleeves protect your connection
  • Blue urethane coating on interior and threads
  • Corrosion protected connections for conduit sections
  • Molded ribs on outer coating for easy installation
  • Nominal 0.002 in (2-mil) blue urethane coating on both interior and exterior
  • Nominal 0.040 in (40 mil) PVC coating bonded to exterior
  • Color-coded thread protectors

Specification

Material
Steel
Minimum Order Qty
1
Order Interval
1
Catalog ID
CONPMCCOU050
Color
Dark Gray
Dimensions
3-3/4 in L
Finish
PVC Coated
Series
CPL
Size
1/2 in
Type
Straight Thread
Standard & Approvals
UL File No. E46453, CSA Certified, RoHS Compliant
