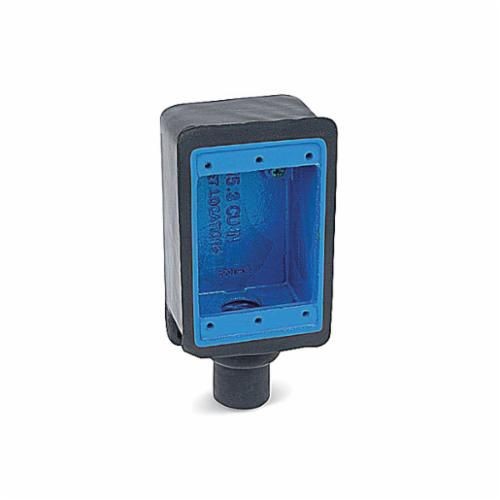

Ocal® FD2-G Type FD Dead End Deep Style Device Box, Iron, 1 Gang, 1 Outlet, 1 Knockout

Selected FS2-GOcal® FD2-G Type FD Dead End Deep Style Device Box, Iron, 1 Gang, 1 Outlet, 1 Knockout
FS2-GOcal® FD2-G Type FD Dead End Deep Style Device Box, Iron, 1 Gang, 1 Outlet, 1 Knockout

Documents

Short Description

Install these boxes in conduit systems to accommodate wiring devices, act as pull boxes for conductors, provide openings to make splices and taps and provide access to conductors for maintenance and future system changes.

Features

  • Pressure sealing sleeves protect connections with conduit
  • Cast class 30 gray iron alloy boxes
  • Coated with a nominal 0.002 in (2 mil) blue urethane on both the interior and exterior before PVC coating is applied
  • Nominal 0.04 in (40 mil) PVC coating bonded to exterior
  • To accommodate wiring devices, act as pull boxes for conductors, provide openings to make splices and taps
  • (1) end cable entry
  • Double Coated PVC finish

Specification

Hub Size
3/4 in
Material
Iron
Number of Gangs
1
Number of Knockouts
1
Number of Outlets
1
Minimum Order Qty
1
Order Interval
1
Cable Entry
Hub
Catalog ID
CONFD2-G
Color
Blue/Dark Gray
Finish
PVC
Series
FD
Shape
Deep
Type
Dead-End
Application
For used to provide access to conductors for maintenance and future system changes
Standard & Approvals
UL E2527, CSA 001472, RoHS Compliant
