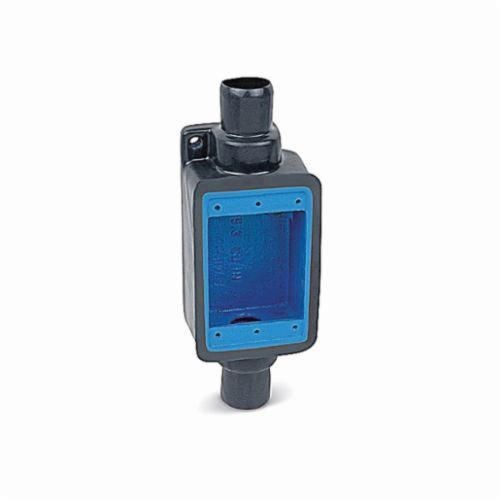

Ocal® FSC2-G Type FS/FD Feed-Through Shallow Style Device Box, Iron Alloy, 1 Gang, 2 Outlets, 2 Knockouts

Selected FSC1-GOcal® FSC1-G Type FS/FD Feed-Through Shallow Style Device Box, Iron Alloy, 1 Gang, 2 Outlets, 2 Knockouts
FSC1-GOcal® FSC1-G Type FS/FD Feed-Through Shallow Style Device Box, Iron Alloy, 1 Gang, 2 Outlets, 2 Knockouts

Documents

Short Description

Install these boxes in conduit systems to accommodate wiring devices, act as pull boxes for conductors, provide openings to make splices and taps and provide access to conductors for maintenance and future system changes.

Features

  • Pressure sealing sleeves protect connections with conduit
  • Cast class 30 gray iron alloy boxes
  • Coated with a nominal 0.002 in (2 mil) blue urethane on both the interior and exterior before PVC coating is applied
  • Nominal 0.04 in (40 mil) PVC coating bonded to exterior
  • To accommodate wiring devices, act as pull boxes for conductors, provide openings to make splices and taps
  • (2) straight cable entry
  • Double Coated PVC finish

Specification

Hub Size
3/4 in
Material
Iron
Number of Gangs
1
Number of Outlets
2
Minimum Order Qty
1
Order Interval
1
Series
FSC
Shape
Shallow
Application
For used to provide access to conductors for maintenance and future system changes
Catalog ID
CONPMCFSC2
Cable Entry
Hub
Number of Knockouts
2
Standard & Approvals
UL E2527, CSA 001472, RoHS Compliant
Type
Feed-Thru
Finish
PVC
Color
Blue/Dark Gray
