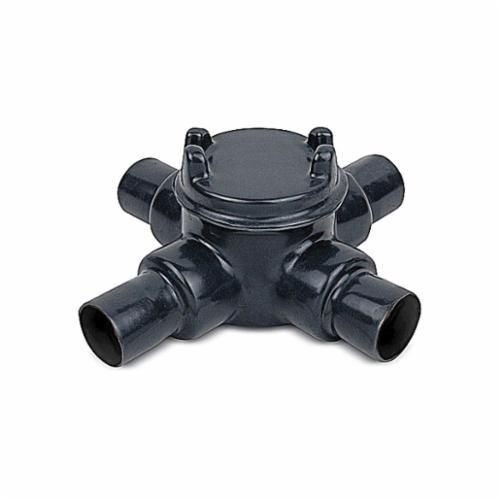

Ocal® GUAX26-G Explosionproof X-Shape Conduit Outlet Box, 3/4 in, 3 in Cover Opening, 13.3 cu-in Capacity, PVC Coated/Zinc Plated

Selected GUAX26-GOcal® GUAX26-G Explosionproof X-Shape Conduit Outlet Box, 3/4 in, 3 in Cover Opening, 13.3 cu-in Capacity, PVC Coated/Zinc Plated
GUAX26-GOcal® GUAX26-G Explosionproof X-Shape Conduit Outlet Box, 3/4 in, 3 in Cover Opening, 13.3 cu-in Capacity, PVC Coated/Zinc Plated

Documents

Short Description

GUA series conduit boxes are installed in hazardous areas to protect conductors, act as pull and splice boxes, provide access to conductors for maintenance and future system changes, act as mounting outlets for fixtures (with proper covers) or change conduit direction.

Features

  • Provides access to wiring, directional changes in conduit
  • Grade 60-45-10 ductile iron bodies and cast aluminum covers (iron covers also available)
  • Nominal 0.002 in (2 mil) blue urethane coating on both interior and exterior and nominal 0.04 in (40 mil) PVC coating bonded to exterior
  • All hubs have minimum five full threads, integral bushing and pressure-sealing sleeves
  • All units furnished with internal grounding screw and ship complete with aluminum cover with O-ring gasket
  • Explosion-proof, dust-ignition-proof, raintight
  • Iron body with aluminum cover

Specification

Material
Iron
Minimum Order Qty
1
Order Interval
1
Color
Gray
Cover Opening Size
3 in
Finish
Zinc Plated
Standard & Approvals
UL E30513, CSA 020945 Certified, RoHs Compliant, Class I, Division 1 & 2, Groups C, D, Class II, Division 1, Groups E, F, G, Class III, Division 1 & 2, NEMA 3, 4, 7 CD, 9 EFG
Application
Use in hazardous locations to provide access to conductors for pulling, splicing, maintenance and future changes/upgrades
Type
X-Shape
Size
3/4 in
Series
GUA
Catalog ID
CONGUAX26-G
Capacity
13.3 cu-in
