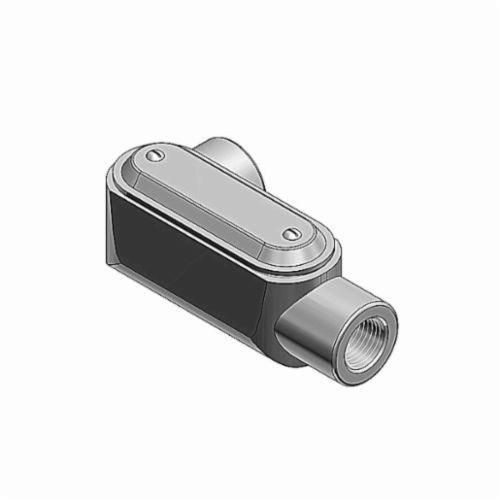

Ocal® OCAL-BLUE® LL37-G Type LL Conduit Body, 1 in Hub, Form 7 Form, 10.6 cu-in Capacity, Iron, PVC Coated

Selected LL67-GOcal® OCAL-BLUE® LL27-G Type LL Conduit Body, 3/4 in Hub, Form 7 Form, 6.6 cu-in Capacity, Iron, PVC Coated
LL67-GOcal® OCAL-BLUE® LL27-G Type LL Conduit Body, 3/4 in Hub, Form 7 Form, 6.6 cu-in Capacity, Iron, PVC Coated

Short Description

With outstanding performance in corrosive environments, Ocal PVC coated conduit and fittings extend the life of your electrical system for many years beyond the lifespan of standard rigid conduit systems.

Features

  • The conduit body and cover are double coated with a nominal 0.002 in blue urethane on both the interior and exterior, before pvc coating is applied
  • A minimum of 0.04 in PVC coating is bonded to the exterior
  • Covers are coated with a molded flange to seal the conduit body while the conduit body is molded with a flat surface on its opening to seal with the cover
  • Ocal pressure-sealing sleeves on all threaded hubs
  • Ocal conduit bodies are shipped with a cover and encapsulated stainless steel screws
  • Bodies are designed with a flat back, allowing more cubic inch capacity
  • The flat back also keeps the body more stable during installation, requiring fewer conduit straps
  • Provide openings for making splices and taps in conductors
  • Provide taps for branch conduit runs, make 90 deg bends in conduit runs
  • Provide for access to conductors for maintenance and future system changes

Specification

Hub Size
1 in
Material
Iron
Number of Hubs
2
Minimum Order Qty
1
Order Interval
1
Capacity
10.6 cu-in
Catalog ID
CONLL37-G
Color
Dark Gray
Connection Type
Threaded
Dimensions
6 in L x 1.9 in W x 2.6 in H
Finish
PVC Coated
Form
7
Type
Type LL
Standard & Approvals
UL E2969 Listed, RoHS Compliant
