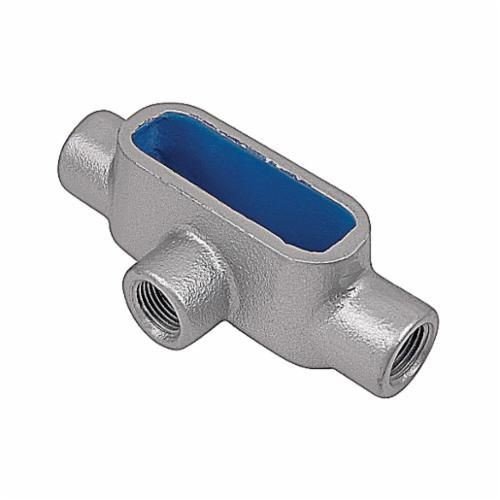

Ocal® OCAL-BLUE® T27SA-G Type T Conduit Body With Cover, 3/4 in Hub, Form 7 Form, Aluminum, PVC Coated

Selected T27SA-GOcal® OCAL-BLUE® T27SA-G Type T Conduit Body With Cover, 3/4 in Hub, Form 7 Form, Aluminum, PVC Coated
T27SA-GOcal® OCAL-BLUE® T27SA-G Type T Conduit Body With Cover, 3/4 in Hub, Form 7 Form, Aluminum, PVC Coated

Short Description

With outstanding performance in corrosive environments, Ocal® PVC-coated conduit and fittings extend the life of your electrical system for many years beyond the lifespan of standard rigid conduit systems. Thomas & Betts has removed certain "Only Ocal®" statements from its literature and advertising as part of the settlement of a lawsuit.

Features

  • The conduit body and cover are double-coated with a nominal 0.002 in, blue urethane on both the interior and exterior, before PVC coating is applied
  • A minimum of 0.04 in PVC coating is bonded to the exterior
  • Ocal® pressure sealing sleeves on all threaded hubs
  • Ocal® conduit bodies are shipped with a cover and encapsulated stainless steel screws
  • Bodies are designed with a flat back, allowing more cubic in capacity, the flat back also keeps the body more stable during installation, requiring fewer conduit straps
  • Provide openings for making splices and taps in conductors
  • Connect conduit sections
  • Provide taps for branch conduit runs
  • Make 90 deg bends in conduit runs
  • Provide for access to conductors for maintenance and future system changes
  • Covers are coated with a molded flange to seal the conduit body while the conduit body is molded with a flat surface on its opening to seal with the cover
  • Act as pull outlets for conductors that are stiff, due to large size or type of insulation

Specification

Material
Aluminum
Type
Type T
Form
7
Finish
PVC Coated
Color
Dark Gray
Dimensions
6.2 in L x 2 in W x 2.6 in H
Standard & Approvals
UL File No. E2969 Listed, CSA Certified
Hub Size
3/4 in
