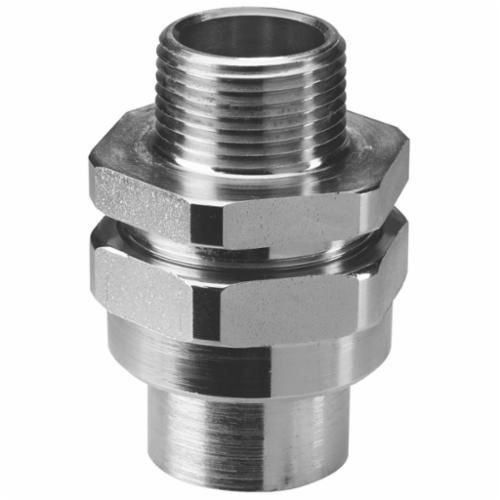

Ocal® OCAL-BLUE® UNY605-G 3-Piece Dust-Ignitionproof Male Explosionproof Conduit Union, 2 in, Steel, Electro Galvanized

Selected Ocal® OCAL-BLUE® UNY605-G 3-Piece Dust-Ignitionproof Male Explosionproof Conduit Union, 2 in, Steel, Electro Galvanized
Ocal® OCAL-BLUE® UNY605-G 3-Piece Dust-Ignitionproof Male Explosionproof Conduit Union, 2 in, Steel, Electro Galvanized

Documents

Short Description

Outstanding performance in corrosive environments, Ocal® PVC coated conduit and fittings extend the life of your electrical system for many years beyond the lifespan of standard rigid conduit systems.

Features

  • Install in threaded thick wall conduit systems in hazardous areas
  • Pressure sealing sleeves protect connections
  • Use UNY male unions to connect conduit to a conduit fitting, junction box or device enclosure
  • Compact design which permits assembly with a minimum of clearance to other adjacent conduit and/or equipment
  • Double coated with a nominal 0.002 in blue urethane on both the interior and exterior, before PVC coating is applied

Specification

Material
Steel
Minimum Order Qty
1
Order Interval
1
Color
Gray
Finish
Electro-Galvanized
Size
2 in
Standard & Approvals
ARRA, Buy American Act and RoHS Compliant, UL 1203, CSA Certified
Application
For hazardous and non hazardous locations
Type
3-Piece Dust-Ignition Proof Male
Suitable For Use With
Conduit Fitting, Junction Box and Device Enclosure
Dimensions
3.81 in OD x 3.5 in L
Catalog ID
CONPMCUNY200
