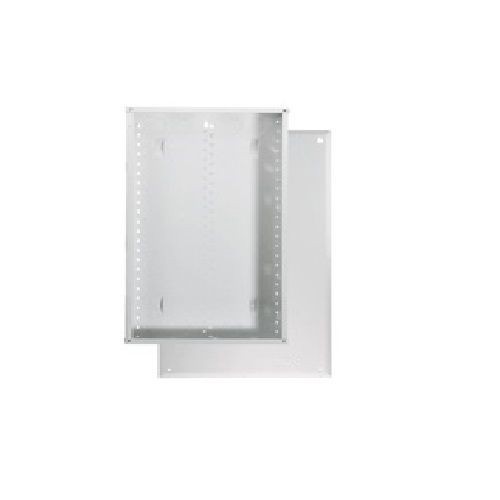

On-Q® EN2000 Rear/Top Structured Wiring Enclosure, 14.3 in W x 3.7 in D x 20.1 in H, Cold Rolled Steel
On-Q® EN2000 Rear/Top Structured Wiring Enclosure, 14.3 in W x 3.7 in D x 20.1 in H, Cold Rolled Steel
SKU: P-SEN2000
Manufacturer Part Number: EN2000
UPC: 804428023067
Documents
Short Description
Features
- Features universal On-Q® bay-style mounting holes that are compatible with all bay-style modules
- Features larger top openings that make pulling wire easier as well as additional knockouts, more side lances and side tabs for more flexible mounting
- Flanged covers hide drywall openings
- Drywall depth indicators
- Flush and surface installation
- Mounting tabs provide correct flush-mount position for standard installations
- Patented mounting system offers versatile module mounting options
- Literature pouch included for dealer information
- Maximum 93% non-condensing humidity
- 3.7 in minimum depth requirement
- 20 ga cold rolled steel material
Specification
| Material | Steel |
|---|---|
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Video | https://www.youtube.com/watch?v=PtKMqcdD63w |
| Catalog ID | P-SEN2000 |
| Color | White |
| Finish | Powder Coated/Glossy |
| Cover Type | Screw-On |
| Mounting Type | Surface/Flush |
| Length | 20.1 in |
| Depth | 3.7 in |
| Includes | Self-Adhesive Cable Identification Table, Literature Pouch |
| Standard & Approvals | cULus Listed, ANSI/UL 1863, ANSI/UL 985, ANSI/UL 1023, CAN/CSA-C22.2 No. 182.4-1990, ULC-S545, CSA C22.2 No. 144.1 (2006), RoHS Compliant |
| Application | Residential/Light Commercial Applications |
| Width | 14.3 in |
