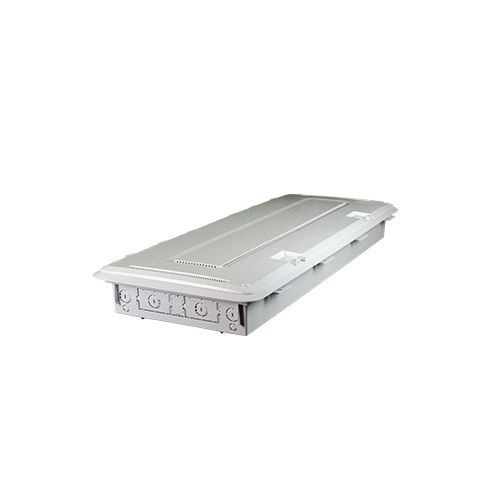

On-Q® ENP4250NA Enclosure With Trim Ring and Hinged Door, 17-1/2 in W x 5-1/2 in D x 44.2 in H, ABS

Selected ENP4250NAOn-Q® ENP4250NA Enclosure With Trim Ring and Hinged Door, 17-1/2 in W x 5-1/2 in D x 44.2 in H, ABS
ENP4250NAOn-Q® ENP4250NA Enclosure With Trim Ring and Hinged Door, 17-1/2 in W x 5-1/2 in D x 44.2 in H, ABS

Documents

Short Description

Constructed with a robust, wireless transparent ABS material, this lightweight, low-profile enclosure is designed to integrate wireless devices into traditional structured wiring installations. New enclosure design enhancements will save you valuable time and money all while still providing a clean, centralized location for the home's wired and wireless services.

Features

  • Made with ABS, the enclosure is designed to integrate wireless devices without interference
  • Door and trim ring add 1.2 in D for cable headroom and 3rd party device compatibility
  • Reversible hinged door easily snaps into integrated trim ring without tools and swings a full 180 deg
  • Trim ring is integrated with door and conceals drywall cutouts for clean finish and smooth transition
  • Universal mounting grid maximizes compatibility with 3rd party products without additional brackets
  • Extra venting along the vertical plane of the door keeps components cool
  • Tapered design allows enclosures and covers to stack for efficient transportation and warehousing
  • Constructed with highly durable ABS plastic material

Specification

Height
44.2 in
Lock
Screw Hole/Key
Material
ABS
Mounting Type
Flush
Minimum Order Qty
1
Order Interval
1
Cable Entry Size
5 x 2 in Knockout (Top), 2 x 1-1/4 in, 2 x 3/4 in Knockouts (Bottom)
Catalog ID
P-SENP4250-NA
Color
White
Cover Type
Hinged
Depth
5-1/2 in
Panel Size
42 in
Temperature Rating
32 to 120 deg F
Width
17-1/2 in
Application
Indoor Applications
Standard & Approvals
ARRA Compliant, BAA Compliant, CAN/CSA C22.2 File No. 60950-01-07, ECCN: EAR99, UL 985/1023/2416/60950-1
