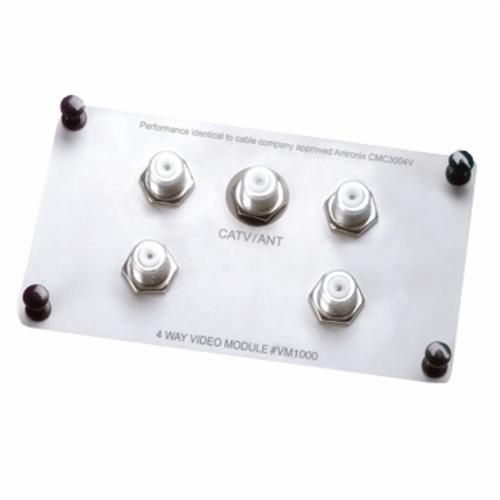

On-Q® VM1000 4-Way Passive Video Splitter, 1 Input, 75 Ohm Impedance

Selected On-Q® VM1000 4-Way Passive Video Splitter, 1 Input, 75 Ohm Impedance
On-Q® VM1000 4-Way Passive Video Splitter, 1 Input, 75 Ohm Impedance

Documents

Short Description

It's time to take television to a whole new level. The new premium video splitters from Legrand let you experience crystal-clear picture quality on TVs in the home. Whether it is HDTV, Digital Cable or Interactive TV, On-Q video products connect you to strong, consistent signals and the clearest and sharpest pictures.

Features

  • Performance identical to cable company approved Antronix CMC300 series
  • High performance splitter designed for digital cable, on demand pay-per-view and high speed cable internet
  • 1-bay footprint
  • F-connector
  • 6 kV ring wave surge protected for high surge resistance
  • 5 to 1000 MHz frequency rating
  • -40 to 60 deg C operating temperature
  • 5 to 40 dB at 6.8 MHz, 40 to 200 dB at 7 MHz, 200 to 550 dB at 7.2 MHz, 550 to 750 dB at 7.4 MHz, 750 to 1000 dB at 7.8 MHz insertion loss
  • 22 dB at 5 to 1000 MHz, 22 dB at 5 to 14 or 550 to 1000 MHz, 38 dB at 14 to 40 MHz, 28 dB at 40 to 200 MHz, 25 dB at 200 to 550 MHz return loss
  • 4-way splitter/combiner

Specification

Minimum Order Qty
1
Order Interval
1
Color
Gray
Standard & Approvals
RoHS Compliant
Dimensions
6-1/2 in W x 3 in H
Catalog ID
P-SVM1000
Cable Type
Coaxial
Material
ABS
Type
1x4 Enhanced
Impedance
75 Ohm
Includes
AC1007 Bracket, Mounting Hardware
