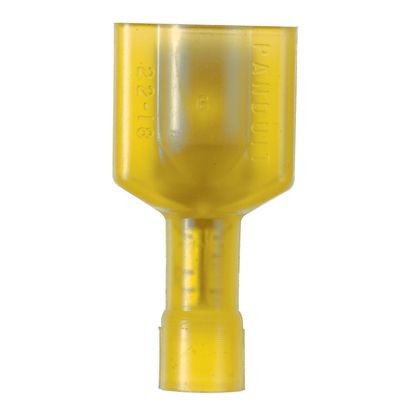

Panduit® Pan-Term™ DNF10-250FIMB-Q DNF-FIMB Fully Insulated Loose Piece Vibration-Resistant Disconnect, 12 to 10 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Butted Seam/Standard Barrel, Copper, Yellow

Selected DNF10-250FIMB-QPanduit® Pan-Term™ DNF10-250FIMB-Q DNF-FIMB Fully Insulated Loose Piece Vibration-Resistant Disconnect, 12 to 10 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Butted Seam/Standard Barrel, Copper, Yellow
DNF10-250FIMB-QPanduit® Pan-Term™ DNF10-250FIMB-Q DNF-FIMB Fully Insulated Loose Piece Vibration-Resistant Disconnect, 12 to 10 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Butted Seam/Standard Barrel, Copper, Yellow

Features

  • Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
  • Premium nylon insulation retains its shape when crimped and provides a tight grip around the wire insulation for maximum strain relief
  • Fully insulated design provides protection from electrical shorts
  • Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
  • Premium nylon fully insulated

Specification

Standard & Approvals
ARRA Compliant, Buy American Act Compliant, CSA C22.2 File No. 153/LR31212, RoHS Compliant, UL 20H3, UL 310, UL94 V-2 HB Flammability Rated, UL File No. E78522
Tab Size
0.25 in W x 0.032 in THK
Temperature Rating
221 deg F
Terminal Type
Male
Voltage Rating
600 VAC
Barrel Type
Butted Seam/Standard
Conductor Size
12 to 10 AWG
Conductor Type
Stranded
EANUCC13
0074983119028
Type
Fully Insulated Loose Piece Vibration-Resistant
Finish
Nickel Plated
Dimensions
0.96 in L x 0.45 in W
Specifications
0.22 in Dia Maximum Nylon Insulation, 9/32 in L Wire Strip, Standard Barrel Configuration
Color
Yellow
Material
Copper
Series
DNF-FIMB
