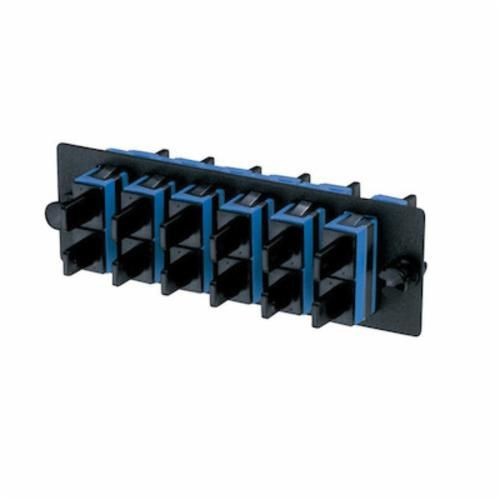

Panduit® Opticom® FAP6WBUDSCZ Type SC Duplex Front Loading Fiber Adapter Panel, (6) OS1/OS2 Single Mode Fiber

Selected FAP6WBUDSCZPanduit® Opticom® FAP6WBUDSCZ Type SC Duplex Front Loading Fiber Adapter Panel, (6) OS1/OS2 Single Mode Fiber
FAP6WBUDSCZPanduit® Opticom® FAP6WBUDSCZ Type SC Duplex Front Loading Fiber Adapter Panel, (6) OS1/OS2 Single Mode Fiber

Documents

Short Description

Opticom® fiber optic Adapter Panels (FAPs) are used with Opticom® Rack and Wall Mount Enclosures, Fiber Adapter Patch Panels, and Opticom® Zero RU Fiber Adapter Panel Brackets to deploy medium to high-density fiber optic network applications as specified in the data center cabling standard TIA 942 for cross connects in main distribution, horizontal distribution, and equipment distribution areas. Opticom® Fiber Adapter Panels snap quickly into the patch panels and enclosures for easy network deployment or moves, adds, and changes. Opticom® Zero RU Fiber Adapter Panel Brackets mount directly to the rack to provide location, connection, and quick deployment of fiber adapter panels without taking any RU space. Multimedia modular panels also allow customization for installation requiring integration of fiber optic and copper cables. Blank fiber adapter panels reserve panel space for future use.

Features

  • Assures flexibility and ease of network deployment and fiber adapter patch panels moves, adds, and changes
  • Provides a complete system solution for connectivity such as horizontal and vertical MPO adapters Keyed LC, SC, ST, FC, MT-RJ, E-2000 and Mini-Com® fiber optic adapter modules, copper jack modules and audio/video modules
  • Easy identification of fiber type via adapter colors; visually compatible with patch cords and connectivity that also follows the color identification scheme
  • Type A polarity incorporates a black MPO adapter housing with a key-up to key-down configuration. Type B polarity incorporates a charcoal gray MPO adapter housing with a key-up to key-up configuration
  • Blue adapter color
  • OS1/OS2 fiber

Specification

Mounting Type
Wall
Number of Ports
6
Minimum Order Qty
1
Order Interval
1
Color
Black
Catalog ID
PDTFAP6WBUDSCZ
Includes
6 SC Duplex Single mode Fiber Optic Adapters and Zirconia Ceramic Split Sleeve
Standard & Approvals
TIA/EIA-604 FOCIS-3, RoHs Compliant
Application
For cross connecting in main distribution, horizontal distribution, and equipment distribution areas
Type
Type SC
Series
Opticom®
