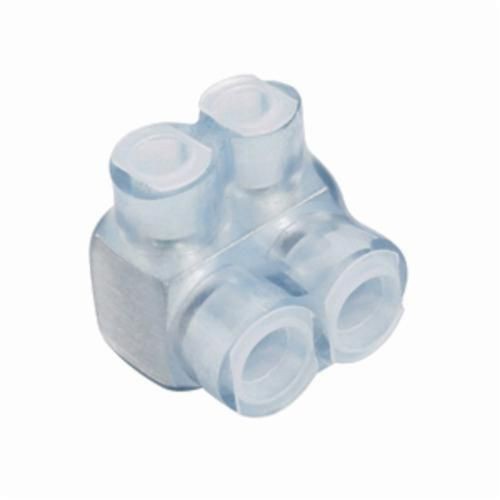

Panduit® Pan-Lug™ PCSB4-4S-6Y 1-Sided 4-Port Multi-Tap Mechanical Connector, 14 to 4 AWG Stranded, 14 to 10 AWG Solid Aluminum/Copper/Stranded/Solid Conductor, Screw Installation, Aluminum/PVC

Selected PCSB600-2S-4YWiremold® G4014A Multi-Channel Wallbox Connector, For Use With 4000 Series Raceway, Steel, Baked Enamel Coated
PCSB600-2S-4YWiremold® G4014A Multi-Channel Wallbox Connector, For Use With 4000 Series Raceway, Steel, Baked Enamel Coated

Documents

Short Description

Panduit ® offers a broad variety of connectors suitable for a wide range of electrical terminations using code conductor. Designed to be reusable and installed without special tooling, Pan-Lug™ Mechanical Connectors provide quality performance, ease of installation, and lowest installed cost

Features

  • Flexible design can be used as a tap, splice, or dead end connector
  • Body made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance
  • Fully insulated with clear PVC to eliminate the need for taping and allow for visual inspection of the complete conductor insertion
  • Each port pre-filled with oxide inhibiting joint compound seals out air and moisture to deter surface oxidation
  • Wide wire range taking capability minimizes inventory requirements
  • Plated steel or aluminum set screw provides high strength, durable electrical contact between conductor and connector
  • 4 ports
  • Screw termination
  • 4 - 14 AWG Stranded copper, 10 - 14 AWG Solid aluminum
  • 6 Pieces/Pack, standard package

Specification

Material
Aluminum
Temperature Rating
90 deg C
Type
Single Sided Entry
Voltage Rating
600 VAC
Specifications
1/8 in Hex Key, Multi-Port
Series
PCSB-S
Dimensions
2.29 in L x 1.25 in W x 1.25 in H
Conductor Size
4 to 14 AWG Stranded
Standard & Approvals
C22.2 No. 65-80 CSA Certified, RoHS Compliant, UL 486A-486B Listed, UL E52164 Listed
Application
For Use on Aluminum or Copper Code Conductors
Conductor Type
Solid/Stranded Aluminum/Copper
