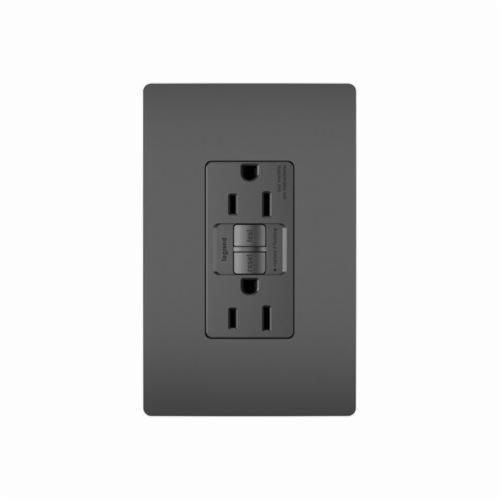

Pass & Seymour® Radiant® 1597BK Duplex Self-Test GFCI Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Black
Pass & Seymour® Radiant® 1597BK Duplex Self-Test GFCI Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Black
SKU: P-S1597-BK
Manufacturer Part Number: 1597BK
UPC: 785007036404
Short Description
Features
- Part of the all-new radiant® collection
- Conducts an automatic test every three seconds, ensuring it's always ready to protect, If the device fails the test, the indicator light flashes to signal that the GFCI should be replaced
- It also has our proven SafeLock protection feature, if critical components are damaged and protection is lost, power to the receptacle is disconnected
- Thinner than competitors' GFCI receptacles leaves more room for wires in the box
- Auto-ground clip assures a positive ground to metal box
- Feed-thru wiring configuration allows GFCI to protect downstream receptacles
- Prevents line load reversal miswire, no power to the face or downstream receptacles if wired incorrectly
- Exceeds UL 943 voltage surge requirements, survives 100x the required UL 3kA/6kV voltage surge test cycles
- Trip indicator light (red LED), two backwire holes per terminal
- Side or internal screw-pressure-plate backwire with 10 - 14 AWG solid or stranded copper wire
- Ground screw has backwire clamp for easy installation
- 10 kA short circuit current rating
- Mounting screws are shipped captive in the device and wall plate for easier installation
- High impact resistant thermoplastic construction
- Extra-long strap, button colors match the device face
- Dual-direction test and reset buttons
- Class A rated GFCI
- 5 +/- 1 m trip threshold, 0.025 sec trip time, 20 Amps feed-thru capacity, 4 to 6 mA trip level, withstands 1500V minimum dielectric voltage, terminals identified in accordance with UL498 (Hot, White, Green)
- 95% maximum humidity, UL94 V2 flammability, nylon face and body, 0.03 in brass contacts, galvanized steel mounting straps
- Nickel plated steel No 8 - 32 terminal screw, steel (green) hex head grounding screw, zinc plated steel flat head mounting screws, Nylon test/reset buttons, brass alloy auto ground clip
Specification
| Frequency Rating | 60 Hz |
|---|---|
| Grade | Specification |
| Material | Nylon |
| NEMA Rating | NEMA 5-15R |
| Number Of Poles | 2 |
| Number of Wires | 3 |
| Series | 1597 |
| Temperature Rating | -35 to 66 deg C |
| Terminal Type | Screw |
| Type | Self Test |
| Voltage Rating | 125 VAC |
| Application | Industrial, Healthcare, Education, Institutional, Retail, Office, Hospitality/Lodging and Multiple Dwelling Use |
| Standard & Approvals | UL 498, cULus Listed |
| Amperage Rating | 15 A |
| Dimensions | 1.03 in L x 1.73 in W x 4.2 in H |
| Color | Black |
