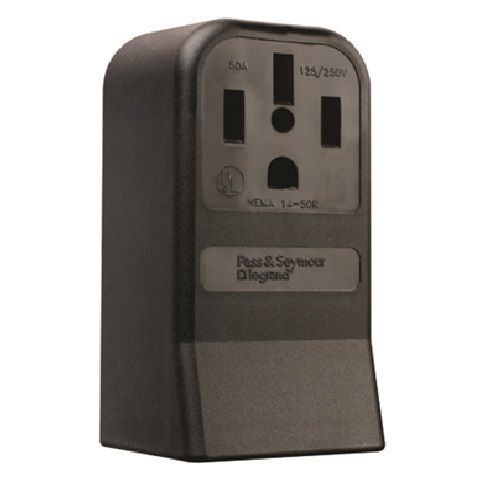

Pass & Seymour® 3854 Grounding Power Outlet Surface Straight Blade Receptacle, 125/250 VAC, 50 A, 3 Poles, 4 Wires, Black
Pass & Seymour® 3854 Grounding Power Outlet Surface Straight Blade Receptacle, 125/250 VAC, 50 A, 3 Poles, 4 Wires, Black
SKU: P-S3854
Manufacturer Part Number: 3854
UPC: 785007792508
Documents
Features
- Wall mounting
- Wire ground connection
- Arc resistant plastic, dead front design & double wire contact
- Quality materials
- Durability, time-tested design
- Specification grade
- 4 AWG
Specification
| Grade | Industrial |
|---|---|
| Material | Thermoplastic |
| Number Of Poles | 3 |
| Number of Wires | 4 |
| Allred Trim Out | YES |
| Alpha And Omega Electric Trim Out | YES |
| JRD Electric Trim Out | YES |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Tri State Electric Trim Out | YES |
| Amperage Rating | 50 A |
| Color | Black |
| Voltage Rating | 125/250 VAC |
| Standard & Approvals | UL 498 Listed, RoHS Complaint |
| Dimensions | 5.7 in H x 2.8 in W x 2.41 in D |
| Catalog ID | P-S3854 |
| NEMA Rating | NEMA 14-50 |
