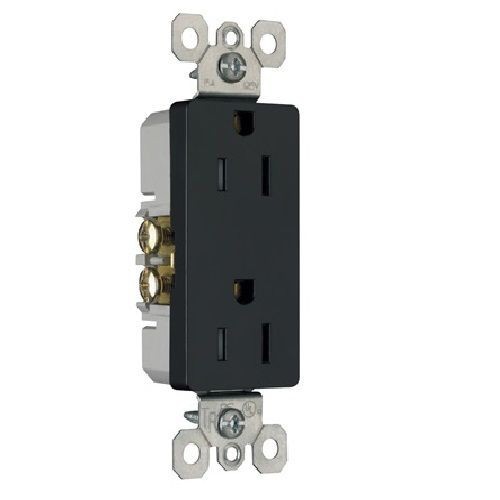

Pass & Seymour® 885TRBK 1-Gang Decorator Tamper Resistant Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Black
Pass & Seymour® 885TRBK 1-Gang Decorator Tamper Resistant Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Black
SKU: P-S885-TRBK
Manufacturer Part Number: 885-TRBK
UPC: 785007861044
Documents
Features
- Wall mounting
- Tamper resistant, quick loop wire aid, extra long strap, side access, push wire
- Bare insulation
- Part of the radiant® collection
- Meets National Electrical Code Tamper Resistant requirements
- Protects children patented shutter system helps prevent improper insertion of foreign objects - now with black "invisi-shutters" for an invisible effect preferred by end users
- Extra long strap
- Quickloop wire looping aid
- Long term blade retention
- Longer tri-drive screws for easier 12 AWG looping
- Extra large circuit break-off tabs
- Side-access push wire release
- Ultrasonic welding of face to back body
- Side wire accepts #12 - #14 AWG solid wire
- Push wire accepts #14 AWG solid only
- Superior protection than traditional outlet caps or protection plates
- Low profile face
- Traditional contoured face
- Residential grade
- 14 - 12 AWG
Specification
| Grade | Commercial |
|---|---|
| Material | Thermoplastic |
| NEMA Rating | NEMA 5-15R |
| Number Of Poles | 2 |
| Number of Wires | 3 |
| Terminal Type | Side Wired |
| Type | Decorator |
| Voltage Rating | 125 VAC |
| Standard & Approvals | CSA C22.2 NO 42 Certified, UL 498 Listed, RoHS Complaint |
| Amperage Rating | 15 A |
| Dimensions | 4.2 in H x 1 in W x 1.29 in D |
| Color | Black |
