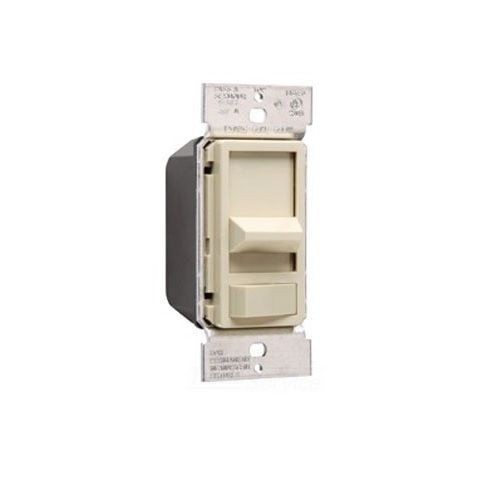

WattStopper® 90683I Wide Slide 3-Way Dimmer Switch, 120 VAC, 1 Pole, Ivory

Selected WattStopper® 90683I Wide Slide 3-Way Dimmer Switch, 120 VAC, 1 Pole, Ivory
WattStopper® 90683I Wide Slide 3-Way Dimmer Switch, 120 VAC, 1 Pole, Ivory

Short Description

Incandescent dimmer shall be UL listed/CSA certified pass and seymour/legrand specification grade, with full range solid-state circuitry that shall provide even control by means of a slide mechanism. Preset lighting levels may be maintained by means of a separate on/off switch. Dimmers shall fit in standard single gang wall boxes.

Features

  • Maximum ratings are for continuous full load
  • Many 1000 W models fit standard decorator plates
  • RFI suppression built in
  • Full on bypass
  • Preset on/off switch automatically returns controlled lights to preset level without readjusting dimmer setting
  • 600 W maximum rated dimmers can be ganged without de-rating
  • LEED contribution

Specification

Frequency Rating
60 Hz
Lamp Type
Incandescent
Power Rating
600 W
Type
Preset
Voltage Rating
120 VAC
Dimensions
4.75 in H x 1.688 in W x 1.469 in D
Color
Ivory
Standard & Approvals
California Title 24 Compliant, CSA Certified, NEMA WD-1 and WD-6, RoHS Compliant, Trade Agreement Act Compliant, UL Listed
Series
Wide Slide
Number Of Poles
3-Way
Material
Polycarbonate/ABS
