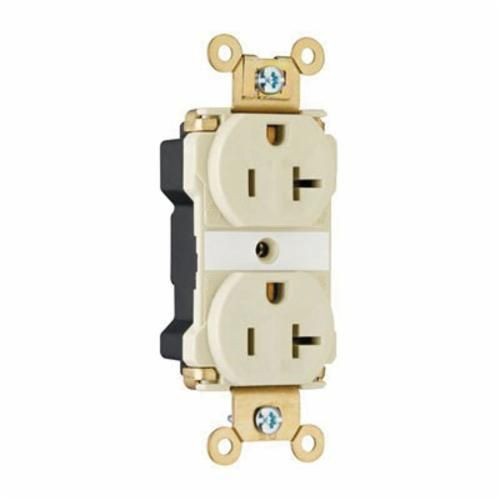

Pass & Seymour® PlugTail® PT5362AI Duplex Extra Heavy Duty Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Ivory
Pass & Seymour® PlugTail® PT5362AI Duplex Extra Heavy Duty Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Ivory
SKU: P-SPT5362-AI
Manufacturer Part Number: PT5362-AI
UPC: 785007860337
Documents
Features
- Wall mounting
- Exclusive patented feature, circuit label on face allows permanent circuit identification
- Auto ground clip assures positive ground
- Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing
- 0.036 in thick brass triple-wipe power contacts for lasting retention
- Two drive screws anchor strap to back body and face
- No exposed terminals create a finger safe application before, during, and after installation
- Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections
- Crimped and welded contacts
- Maximum 30 deg C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current
- Wattage of electrical power is expressed in Amps and Volts
- Dielectric strength withstands 2000V
- Exclusive patented feature, circuit label on back allows permanent circuit identification
- Large brass contacts snugly terminate on device blade terminals
- Strap tabs wrap around and lock down on face to prevent strap from separating from face and back body
- Pre-stripped connector leads fasten to conductors, easier than standard pigtails
- Copper conductor, 6 in leads, stripped, solid or stranded, for use with Plug Tail Receptacles only
- Extra heavy duty specification grade
- -40 to +60 deg C without impact continuous operating temperature
- 12 AWG
Specification
| Grade | Commercial |
|---|---|
| Material | Nylon |
| NEMA Rating | NEMA 5-20R |
| Number Of Poles | 2 |
| Number of Wires | 3 |
| Temperature Rating | -40 to 60 deg C |
| Voltage Rating | 125 VAC |
| Amperage Rating | 20 A |
| Color | Ivory |
| Dimensions | 1.625 in L x 0.866 in W x 3.281 in H |
| Standard & Approvals | cULus, UL498, E140596 Listed, RoHS Complaint |
| Terminal Type | 6 in Pigtail Lead |
