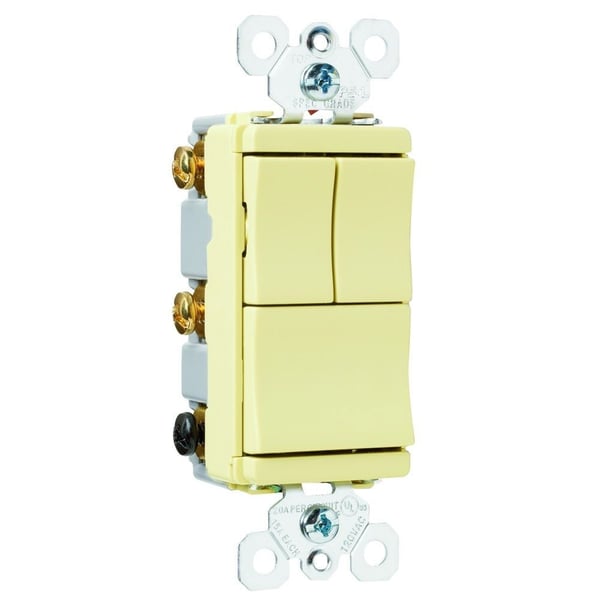

Pass & Seymour® TradeMaster® TM8111-ICC Decorator Combination Switch, 15 A, 120 VAC, 3 Poles
Pass & Seymour® TradeMaster® TM8111-ICC Decorator Combination Switch, 15 A, 120 VAC, 3 Poles
SKU: P-STM8111-ICC
Manufacturer Part Number: TM8111-ICC
UPC: 785007009378
Features
- Impact-resistant face and body
- Fully rounded back body protects wires from being damaged by sharp edges
- Clear identification of circuits
- External screw-pressure-plate back and side wired
- Ground screw position under the end of the strap minimizes the risk of contact
- Unique "Up/Down" switches match the look and feel of standard decorator switches
- Largest breadth of 15 A offering
- All screws are tri-drive
- Patented split circuit tab easily accessible and can be reinstalled without a tool
- Tamper-resistant version features dual mechanical shutter system to help prevent insertion of foreign objects
- Full wraparound metal strap with lock-in tabs
- Accepts 14 to 12 AWG wire
Specification
| Insulation Type | Bare |
|---|---|
| Material | Thermoplastic |
| Mounting | Wall |
| Number Of Poles | 3 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Catalog ID | P-STM8111-ICC |
| Color | Ivory |
| Electrical Rating | 120 VAC, 15 A |
| Enclosure | NEMA WD-1/WD-6 |
| Size | 3.81 in H x 1.29 in W x 1.59 in D |
| Application | For residential and commercial application |
| Standard & Approvals | cULus, UL 20 Listed |
