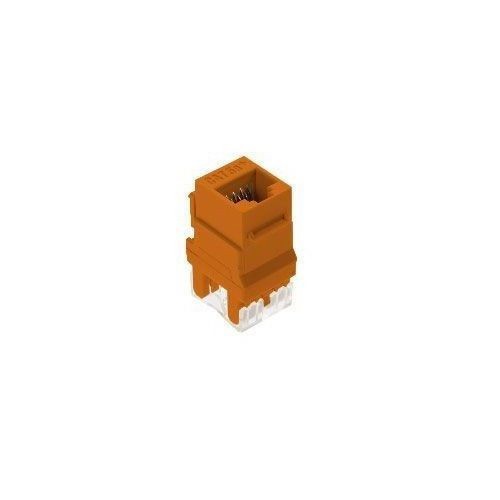

On-Q® WP3450OR Vertical Orientation Keystone Connector, Cat 5e Module, Surface Mount, 1 Port, Plastic, Orange

Selected On-Q® WP3450OR Vertical Orientation Keystone Connector, Cat 5e Module, Surface Mount, 1 Port, Plastic, Orange
On-Q® WP3450OR Vertical Orientation Keystone Connector, Cat 5e Module, Surface Mount, 1 Port, Plastic, Orange

Documents

Short Description

The vertical design of this high quality insert makes punch down termination easy. the insert is for use in all keystone wall plates and is available in multiple colors, as well as convenient contractor packs.

Features

  • High quality insert for use in multimedia wallplates
  • Rear retention caps ensure secure wire termination
  • Vertical design for easy punch down termination
  • Insertion and extraction life is 750 cycles min
  • Jack housing is high impact, flame-resistant plastic
  • Spring wire is phosphor bronze alloy plated with 50 micro-inches of gold over 100 micro-inches of nickel
  • -40 to 70 deg F storage temperature, 93% maximum non-condensing humidity
  • 22 to 24 AWG IDC wire gauge termination

Specification

Material
Plastic
Mounting Type
Keystone
Minimum Order Qty
1
Order Interval
1
Color
Orange
Series
WP Series
Includes
T568A, T568B Wiring Label
Standard & Approvals
cULus Listed, UL 1863, CAN/CSA-C22.2 No. 182.4-1990, ANSI Specified, RoHS Compliant
Application
Commercial and Residential Application
Type
Cat 5e
Specifications
M20, 1 Port 4 Pair Count, RJ45 Connector
Dimensions
0.67 x 0.76 x 1.18 in
Catalog ID
P-SWP3450-OR
