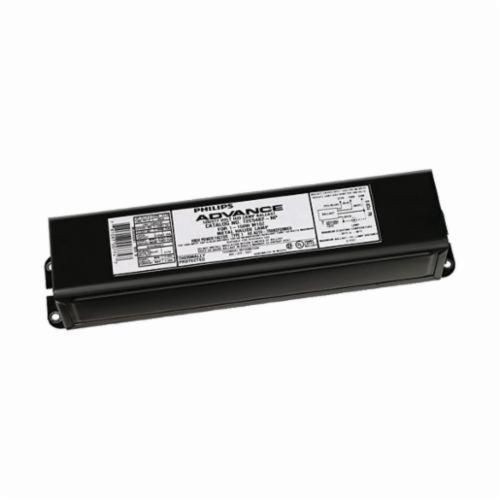

Advance 72C5581NP001 F-Can Magnetic HID Ballast, HID Metal Halide Lamp, 175 W Lamp, 120/277 VAC, Probe, 1 Ballast Factor

Selected 72C6082NP001Advance 72C5581NP001 F-Can Magnetic HID Ballast, HID Metal Halide Lamp, 175 W Lamp, 120/277 VAC, Probe, 1 Ballast Factor
72C6082NP001Advance 72C5581NP001 F-Can Magnetic HID Ballast, HID Metal Halide Lamp, 175 W Lamp, 120/277 VAC, Probe, 1 Ballast Factor

Short Description

Philips Advance HID ballasts are available to operate the wide variety of metal halide, high pressure sodium and low pressure sodium lamps available in today’s marketplace. Like fluorescent, HID lamps are gas discharge lamps. Light is produced by an arc discharge between two electrodes located at opposite ends of an arc tube within the lamp’s outer glass envelope. The ballast is the lamp’s power supply; its purpose is to provide proper starting and operating voltage and current to initiate and sustain this arc. Philips furnishes 120/208/240/277 Philips Advance Quadri-Volt core and coil ballasts to allow the stocking distributor to conveniently meet the replacement and retrofit needs of customers. In addition, we now offer 120/208/240/277/480V 5-TAP core and coil ballasts for the most popular applications. 5-TAP ballasts add the 480V input lead to the Quadri-Volt designs. A Quadri-Volt or 5-TAP core and coil, along with the appropriate capacitor, ignitor (where required), mounting bracket and hardware and installation instructions are packed in a space-saving shipping carton. These "kits" eliminate the need for distributors or end-users to stock loose components of single voltage ballasts for 120, 208, 240, 277 and even some 480V applications, though single voltage kits for 480V applications will also be available.

Features

  • The Philips Advance line of F-can HID ballasts comes in two dual-voltage configurations for the US and Canadian market
  • Ballasts for these luminaires are most often encased and potted in fluorescent ballast type cans
  • 2.15/0.92 A Input Current (Open Circuit), 0.85/0.36 A Input Current (Starting), 0.56-0.85/0.24-0.36 A Input Current (Short Circuit), 1.75/0.75 A Input Current (Nom)
  • Thermally protected
  • Ballast replacement kit with oil filled capacitor
  • UL Insulation Class A of 105 deg C

Specification

Frequency Rating
60 Hz
Lamp Base Type
72C5581
Lamp Type
Metal Halide
Lamp Wattage
175/150 W
Material
Metal
Minimum Starting Temperature
-20 deg F
Number of Lamps
1
Power Factor
0.9
Start Type
Probe
Type
Magnetic
Voltage Rating
120/277 VAC
Wattage
205 W
Standard & Approvals
UL Insulation Class A, RoHS Compliant, ANSI M57-M107
Amperage Rating
1.75/0.75 A
Dimensions
12 in L x 2.6 in W x 3.9 in H
Ballast Factor
1
Enclosure Type
F-Can
