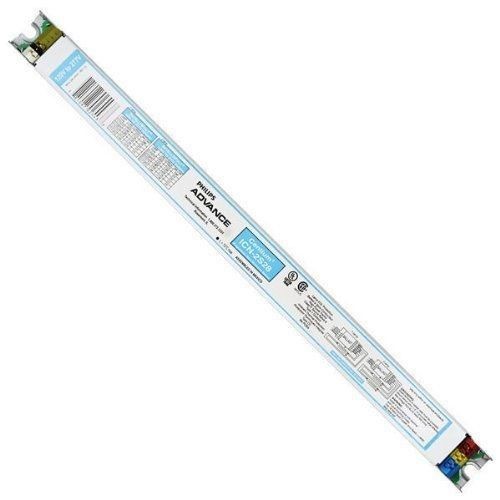

Advance Centium® ICN2S28T35I Electronic Fluorescent Ballast, T5 Lamp, 28 W Lamp, 120 to 277 VAC, Programmed/Rapid, 1 Ballast Factor

Selected Advance Centium® ICN2S28T35I Electronic Fluorescent Ballast, T5 Lamp, 28 W Lamp, 120 to 277 VAC, Programmed/Rapid, 1 Ballast Factor
Advance Centium® ICN2S28T35I Electronic Fluorescent Ballast, T5 Lamp, 28 W Lamp, 120 to 277 VAC, Programmed/Rapid, 1 Ballast Factor

Short Description

Philips Advance Centium ballasts for T5 lamps at 120-277V are now available with our industry leading N-can at 9.5" x 1.3" x 1.0" or T-can at 14.17" x 1.18" x 1.06", which provides fixture manufacturers increased versatility in their newer generation fixture designs. These ballasts are compatible with all major energy saving T5 linear lamps and have a variety of other features which makes them Ideal for a variety of applications. The ballasts’ programmed start ignition provides extended lamp life in frequent switching applications such as those where occupancy sensors are being used. They also feature lamp End-Of-Life (EOL) protection circuitry which safely removes power from the lamp at the end of lamp life.

Features

  • High power factor
  • T5 RS lamp type

Specification

Frequency Rating
50/60 Hz
Lamp Type
T5
Lamp Wattage
28 W
Material
Metal
Number of Lamps
2
Power Factor
0.98
Start Type
Programmed
Temperature Range
70 deg C
Total Harmonic Distortion
0.1
Voltage Rating
120 to 277 VAC
Dimmable
No
Ballast Factor
1
Dimensions
14.17 in L x 1.18 in W x 1.06 in H
Amperage Rating
0.23 to 0.55 A
Standard & Approvals
UL Listed, CSA Certified, RoHS Compliant
Thermal Protection
Class P
