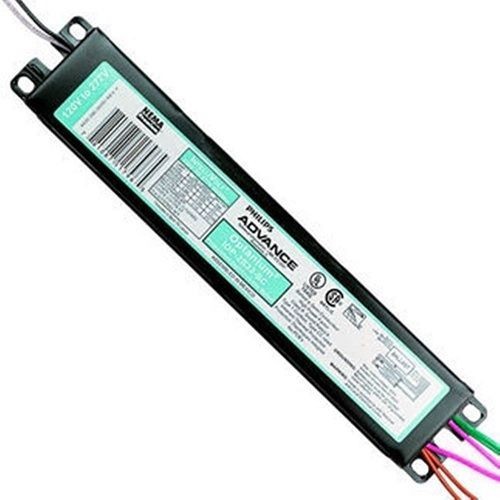

Advance OPTANIUM IOP2S28115SCSD35M Electronic Fluorescent Ballast, T5 Lamp, 28 W Lamp, 120 to 277 VAC, Programmed/Rapid, 1.15 Ballast Factor

Selected Advance OPTANIUM IOP2S28115SCSD35M Electronic Fluorescent Ballast, T5 Lamp, 28 W Lamp, 120 to 277 VAC, Programmed/Rapid, 1.15 Ballast Factor
Advance OPTANIUM IOP2S28115SCSD35M Electronic Fluorescent Ballast, T5 Lamp, 28 W Lamp, 120 to 277 VAC, Programmed/Rapid, 1.15 Ballast Factor

Documents

Short Description

Philips Advance Optanium ballasts with step-dim capability for T5 and T8 fluorescent lamps represent an affordable, energy efficient, and versatile lighting solution designed to meet energy codes such as California’s Title 24 and ASHRAE 90.1-2010 that require end users to reduce lighting power consumption by 50%. Operating from any line voltage switching device, the ballast’s programmed start circuitry provides extended lamp life in frequent switching applications like those associated with the use of occupancy sensors or motion detectors making this product the sustainable choice for many commercial applications.

Specification

Frequency Rating
50/60 Hz
Material
Metal
Number of Lamps
2
Voltage Rating
120 to 277 VAC
Application
Outdoor Use
Standard & Approvals
UL Listed, CSA Certified, RoHS Compliant
Ballast Factor
1.15
Total Harmonic Distortion
0.1
Temperature Range
70 deg C
Start Type
Programmed
Power Factor
0.98
Minimum Starting Temperature
32 deg F
Lamp Wattage
28 W
Lamp Type
T5
Dimensions
9.5 in L x 1.7 in W x 1.18 in H
Amperage Rating
0.26 to 0.6 A
Enclosure Type
NEMA 35A
