Advance ISB021612EI SignPRO Magnetic Fluorescent Ballast, T12/HO Lamp, 110 W Lamp, 120 to 277 VAC, Instant, 0.68 Ballast Factor

Selected ICN2S5490CN35MAdvance Centium® ICN2S28N35I Electronic Fluorescent Ballast, T5 Lamp, 28 W Lamp, 120 to 277 VAC, Programmed, 1.028 Ballast Factor
ICN2S5490CN35MAdvance Centium® ICN2S28N35I Electronic Fluorescent Ballast, T5 Lamp, 28 W Lamp, 120 to 277 VAC, Programmed, 1.028 Ballast Factor

Documents

Short Description

Philips Advance signPRO line, a brand synonymous with full-line, high quality sign ballasts offered exclusively to the sign industry to support the market’s broad range of sign applications, now addssignPRO Electronic Fluorescent Sign Ballasts. These ballasts support over 200 different fluorescent lamp combination form the convenience of just four energy-efficient and easy-to-use models.

Features

  • Parallel lamp operation
  • Blue color label identification
  • 20 - 24 dB Average ambient noise level
  • High power factor
  • IntelliVolt operation (120V to 277V, 50/60 Hz)
  • Energy-efficient, DOE Nov. 14, 2014 compliant
  • Instant Start, parallel lamp operation
  • Dependable starting down to -20 deg F
  • Designed for T8/HO and T12/HO High Output (800mA) Lamps
  • Simplifies inventory needs with wide range of input voltages
  • Flexible multiple lamp operation
  • Smart replacement for banned magnetic rapid start sign ballasts

Specification

Frequency Rating
50/60 Hz
Lamp Wattage
110 W
Material
Metal
Number of Lamps
4
Start Type
Instant
Voltage Rating
120 to 277 VAC
Ballast Factor
0.68
Application
Indoor and Outdoor Electronic Signs

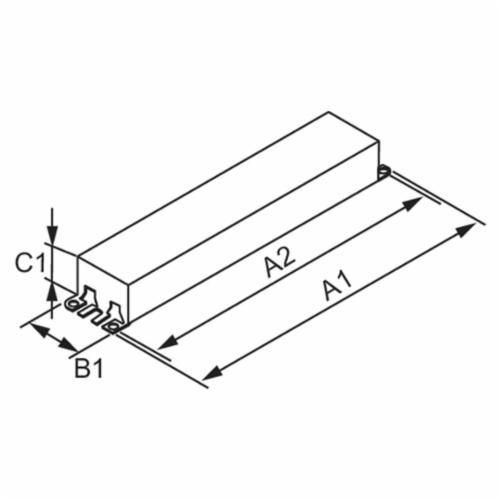

Dimensions
9.64 in L x 1.69 in W x 1.13 in H
Amperage Rating
1.14 A
Standard & Approvals
UL File No. E14927, CSA File No. 007310, ANSI C82.1, RoHS Compliant
Wattage
136 to 133 W
Total Harmonic Distortion
0.1
Series
SignPRO
Power Factor
0.98
