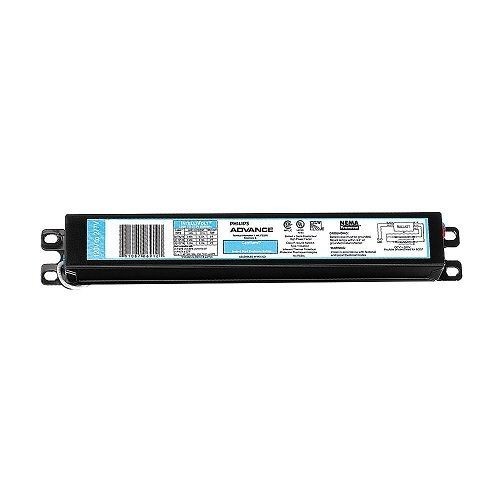

Advance Mark 7 0-10V IZT4S3235M Controllable Dimmable Fluorescent Ballast, T8 Lamp, 32 W, 120 to 277 VAC, Programmed, 0.05 to 0.88 Ballast Factor

Selected Advance Mark 7 0-10V IZT4S3235M Controllable Dimmable Fluorescent Ballast, T8 Lamp, 32 W, 120 to 277 VAC, Programmed, 0.05 to 0.88 Ballast Factor
Advance Mark 7 0-10V IZT4S3235M Controllable Dimmable Fluorescent Ballast, T8 Lamp, 32 W, 120 to 277 VAC, Programmed, 0.05 to 0.88 Ballast Factor

Documents

Short Description

The Mark 7 0-10V series of dimmable electronic ballasts offer maximum versatility by incorporating separate control leads for use with a wide array of controllers, including occupancy sensors, daylight harvesting controls, and building management systems from more than 40 manufacturers. When paired with linear fluorescent and 4-pin compact fluorescent lamps, Mark 7 0-10V ballasts optimize the benefits of such popular sustainable lighting techniques as daylight harvesting, occupancy sensors, and load shedding to satisfy the need for an affordable, flexible and versatile controllable lighting solution.

Features

  • High power factor
  • Sound rated A
  • Series lamp connection
  • Ballast shall be physically interchangeable with standard electromagnetic or standard electronic ballasts, where applicable
  • Ballast shall be available in a plastic/metal can or all metal can construction to meet all plenum requirements
  • Ballast shall be provided with poke-in wire trap connectors or integral leads color coded per ANSI C82.11
  • Controllable ballast

Specification

Frequency Rating
50/60 Hz
Lamp Type
T8
Lamp Wattage
32 W
Material
Metal
Minimum Starting Temperature
10 deg C
Number of Lamps
4
Power Factor
0.99
Start Type
Programmed
Temperature Range
70 deg C
Voltage Rating
120 to 277 VAC
Standard & Approvals
UL Listed, CSA Certified, NEMA Rated, RoHS Compliant, CEC Listed, CEE Rated
Ballast Factor
0.88
Dimensions
16.7 in L x 1.18 in W x 1 in H
Application
TV or Radio Station, Library, Reception or Reading Room, Church and School Study Hall
Series
Mark 7 0 - 10 V
