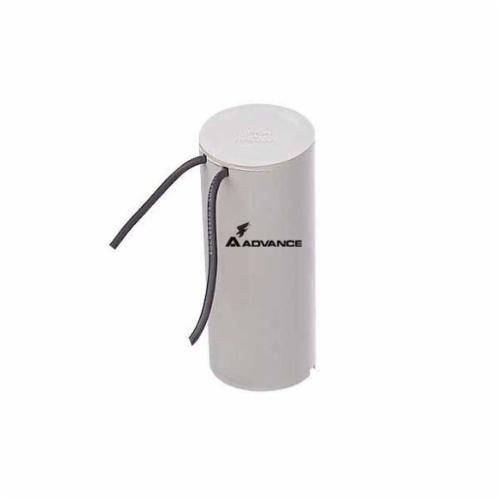

Advance MD2409100 Oil Filled Ballast Capacitor With Leads, HID Lamp, 24 uF, 480 VAC, Plastic
Advance MD2409100 Oil Filled Ballast Capacitor With Leads, HID Lamp, 24 uF, 480 VAC, Plastic
SKU: ADVMD2409100
Manufacturer Part Number: MD2409100
UPC: 781087002476
Documents
Features
- Contain no PCB’s
- Oval/Cylinder Case
- Case must be grounded
- Furnished with appropriate leads and/or resistors where required
- Single lamp
Specification
| Height | 3.9 in |
|---|---|
| Lamp Type | HID |
| Lamp Wattage | 1000 W |
| Material | Plastic |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Capacitance | 24 uF |
| Catalog ID | ADVMD2409100 |
| Diameter | 1-3/4 in |
| Suitable For Use With | 71A65_0, 71A65_1, 71A65_2 or 71A65_3 Metal Halide 60 Hz Bi-Level Operation CWA/SuperCWA Ballasts |
| Temperature Rating | 90 deg C |
| Type | Oil-Filled |
| Voltage Rating | 480 VAC |
| Standard & Approvals | CSA Certified, RoHS Compliant |
